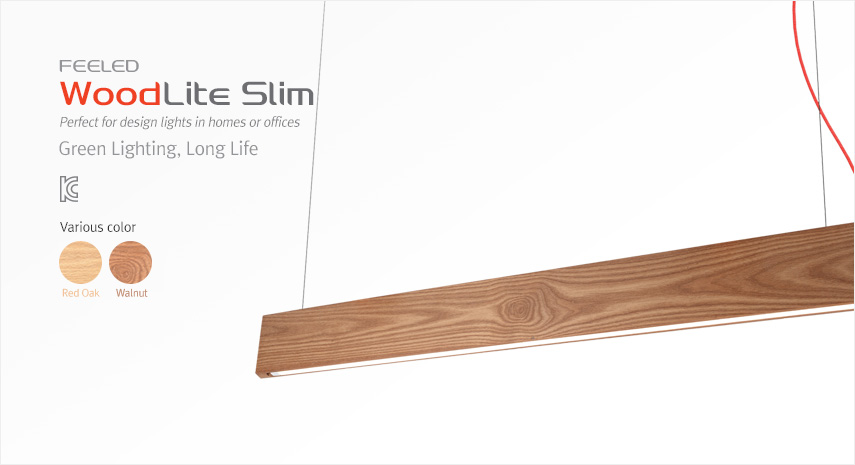

WoodLite Slim

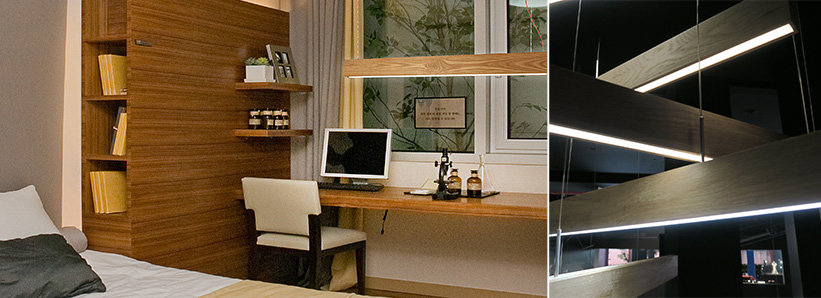

- - Pendent style suitable for office, residence, restaurant
- - Harmonized with furniture or interior designs
- - High CRI Value Achieved
- - Using DC 24V Driver
| Model Name | Lamp Power | Luminous Flux |
|---|---|---|
| WoodLite Slim NDP15 30K-24V | 15W | 1,275 lm |
| WoodLite Slim HDP24 30K-24V | 24W | 2,040 lm |
- - Power Input : DC24V
- - Efficiency : 85 lm/W
- - Color Rendering : Ra > 90
- - Available Color : 2,700K/3,000K/3,500K/4,000K/6,000K
- - Operating Temperature : 0~45℃

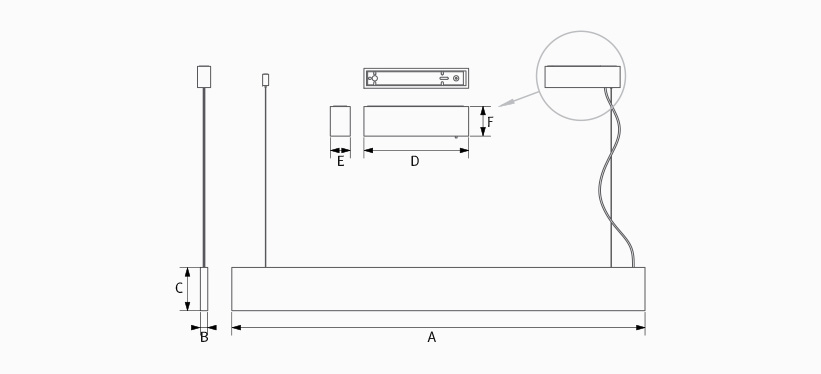

| Model Name | Power Input (V) | Lamp Power (W) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) |
|---|---|---|---|---|---|---|---|---|
| WoodLite Slim NDP15 30K-24V | DC24V | 15 | 1200 | 19.5 | 115 | 202 | 36 | 56.3 |
| WoodLite Slim HDP24 30K-24V | DC24V | 24 | 1200 | 24 | 115 | 243.5 | 44.7 | 52.3 |
 |

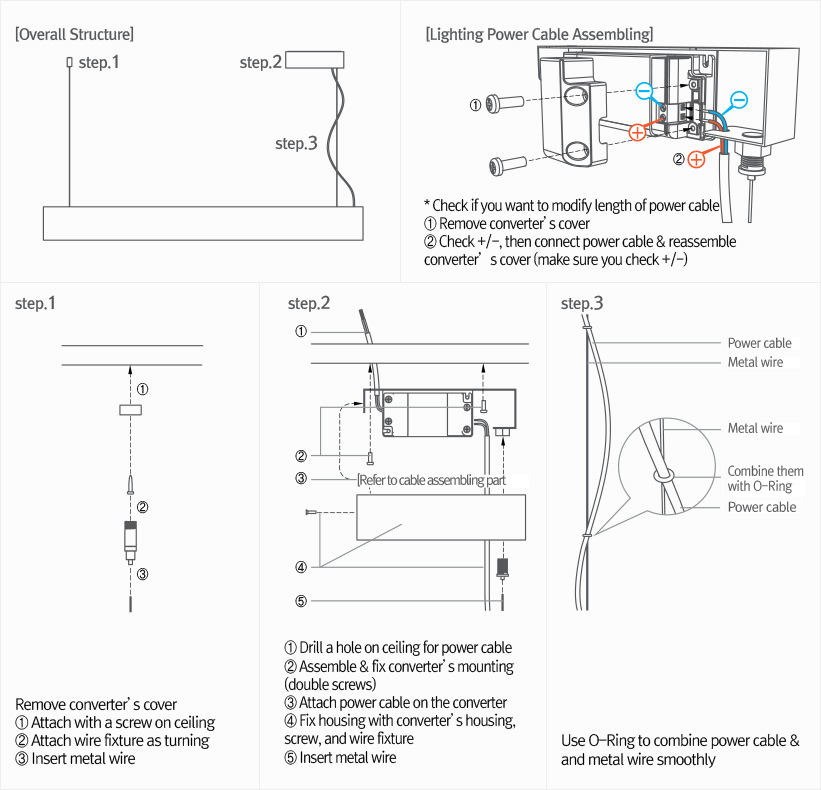

LED converter |
|
||||||
|---|---|---|---|---|---|---|---|---|
 |
Converter Housing | |||||||
 |
Power Wire (1.8M) | |||||||
 |
Wire (1.5M) | |||||||
 |
Wire fixture |
Looking for additional information about us and our products?
Below links are available for you to download/view additional brochure and technical Photometric information. You may need to download required programs to execute following extension files
