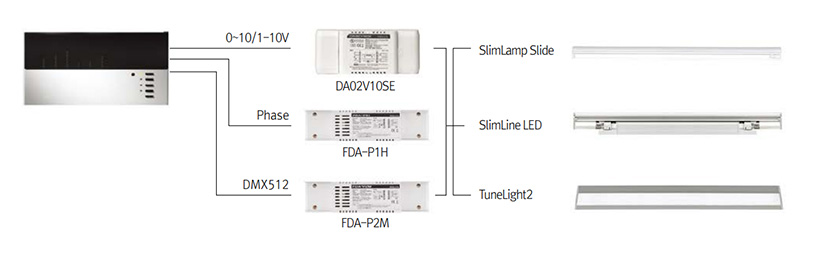

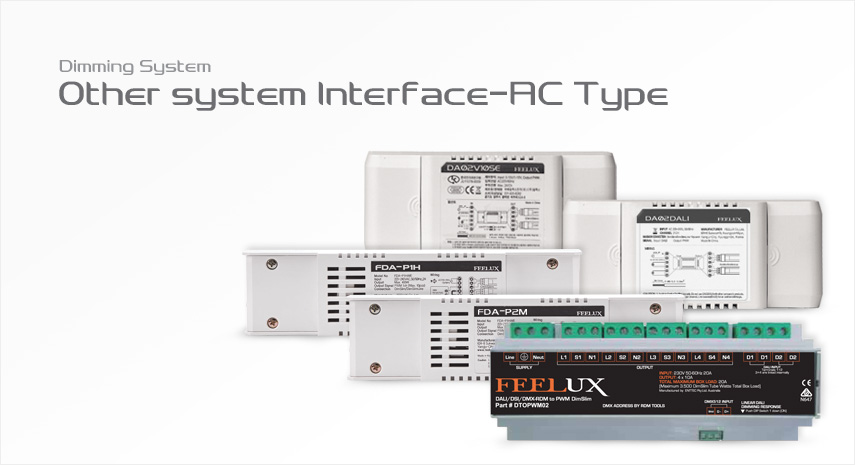

Other system Interface-AC type
DA02V10SE (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 2CH
Input Signal : DC 0-10V/1-10V
Out Power : DC220-240V, PWM output 2CH
Output Load : Max 10 pcs of AC dimming products per channel and up to 200W per channel
Size : W139.8 X H58.4 X D33 (mm)
Rated Input : AC 220-240V, 50/60Hz
• Wiring
FDA-P1H (Phase to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : Phase
Output Signal : PWM
Output Load : Max 10 pcs of AC dimming products per channel and up to 200W per channel
Size : W200 X H50 X D35 (mm)
Rated Input : AC 220-240V, 50/60Hz, 2A
• Wiring
FDA-P2M (DMX512 to PWM translator) Manual
• Specification
Channel : 2CH (Up to 512CH extended)
Input Signal : DMX512
Output Signal : PWM
Output Load : Max 10 pcs of AC dimming products per channel and up to 200W per channel
Size : W200 X H50 X D35 (mm)
Rated Input : AC 220-240V, 50/60Hz, 3A
• Wiring
