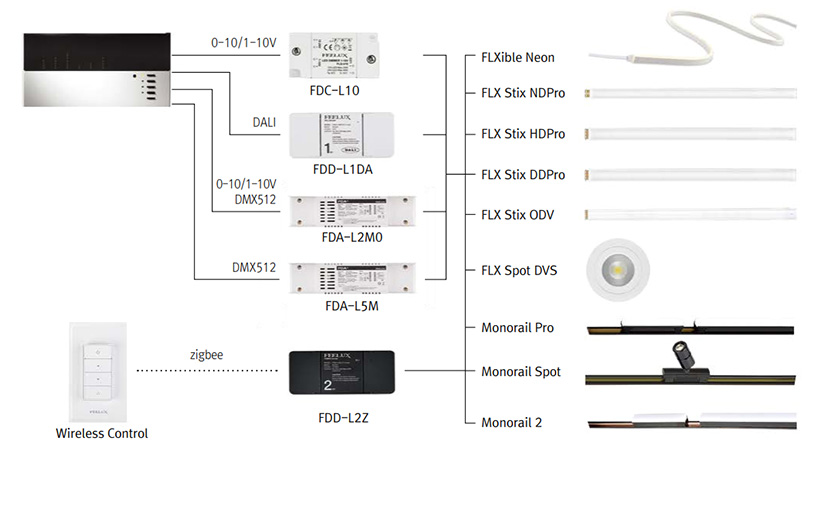

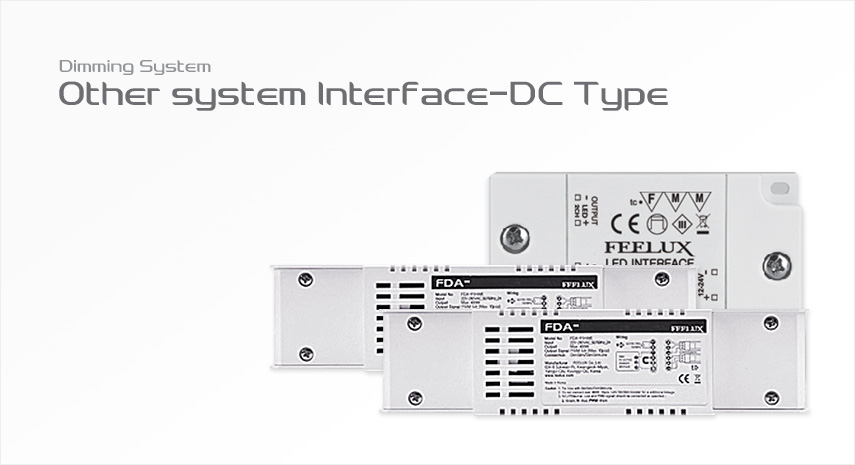

Other system Interface-DC type
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Out Signal : PWM
Output Load : DC12V LED Max. 50W, DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 12-24V

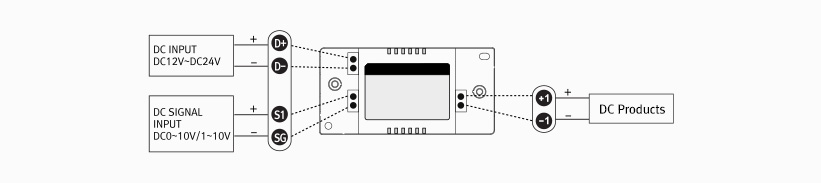

• Wiring
FDA-L2M0 Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Out Signal : PWM
Output Load : DC 12V LED Max.100W(50W/CH) / DC 24V LED Max.200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 12-24V

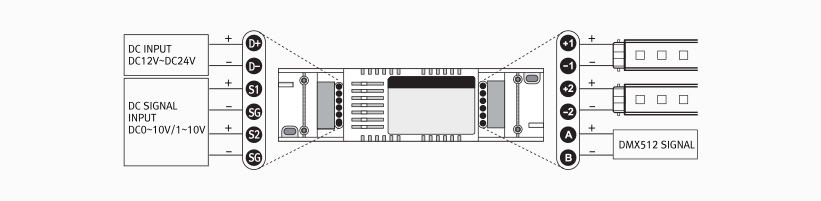

• Wiring
FDA-L5M Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 12V LED Max.100W(20W/CH) / DC 24V LED Max.200W(50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 12-24V

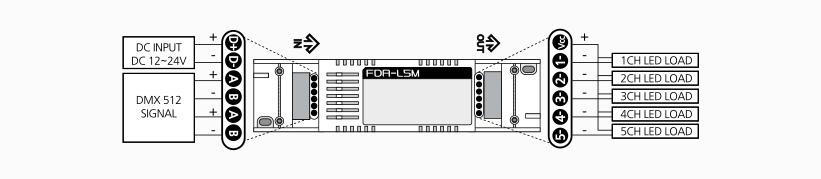

• Wiring
