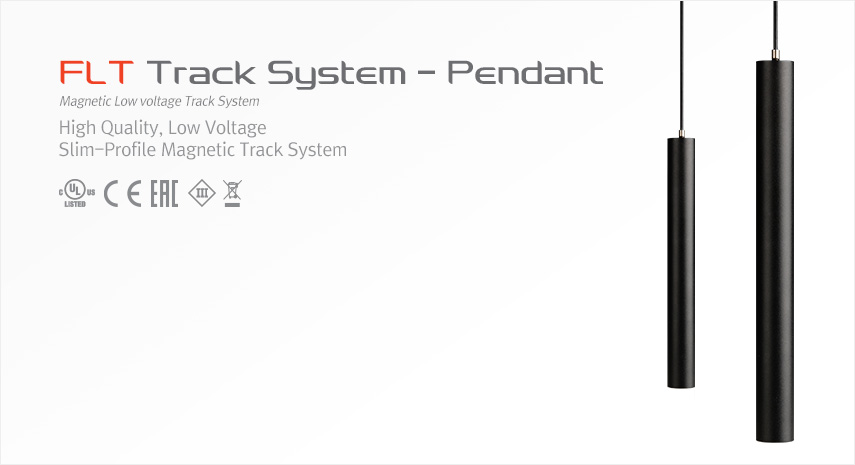

FLT Track System-Pendant
- - Magnetic system for easy installation and adjustment
- - Safe Low Voltage 24V DC
- - Surface, Recessed and Pendant mount track available
- - Black and White Finishes
- - Various light fixtures and beam angle

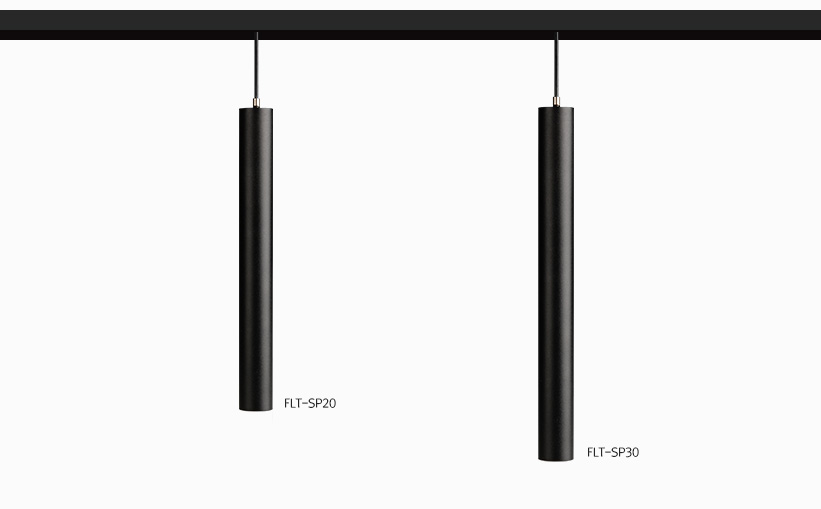

| Model Name | Lamp Power | Luminous Flux (3000K) | Efficiency |
|---|---|---|---|
| FLT-SP20 30K-24V | 2.3 W | 114 lm | 50.54 lm/W |
| FLT-SP30 30K-24V | 2.3 W | 113.62 lm | 50.44 lm/W |
- - Power Input : DC 24V
- - Color Rendering : Ra > 90
- - Available Color : 3,000K/4,000K/5,700K
- - Operating Temperature : 0 ~ 45℃

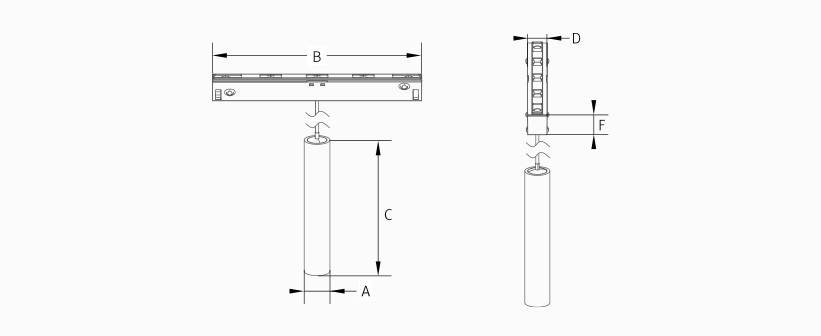

| Model Name | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
|---|---|---|---|---|---|
| FLT-SP20 30K-24V | 20.5 | 167 | 200 | 16 | 18 |
| Beam angle | Black | White |
|---|---|---|
| 20° | FLT-SP20 30K-24V-BK-20 | FLT-SP20 30K-24V-WT-20 |

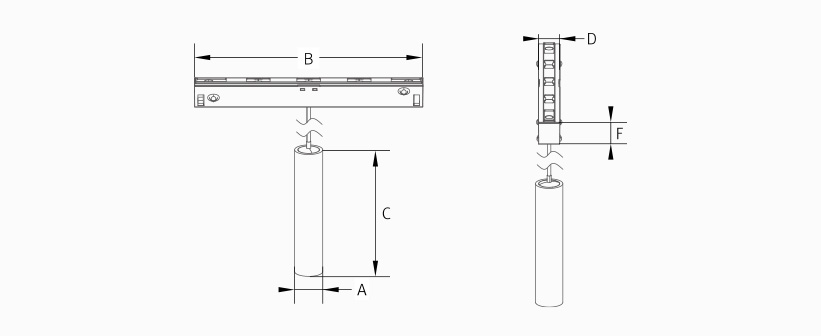

| Model Name | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
|---|---|---|---|---|---|
| FLT-SP30 30K-24V | 20.5 | 167 | 300 | 16 | 18 |
| Beam angle | Black | White |
|---|---|---|
| 20° | FLT-SP30 30K-24V-BK-20 | FLT-SP30 30K-24V-WT-20 |
 |

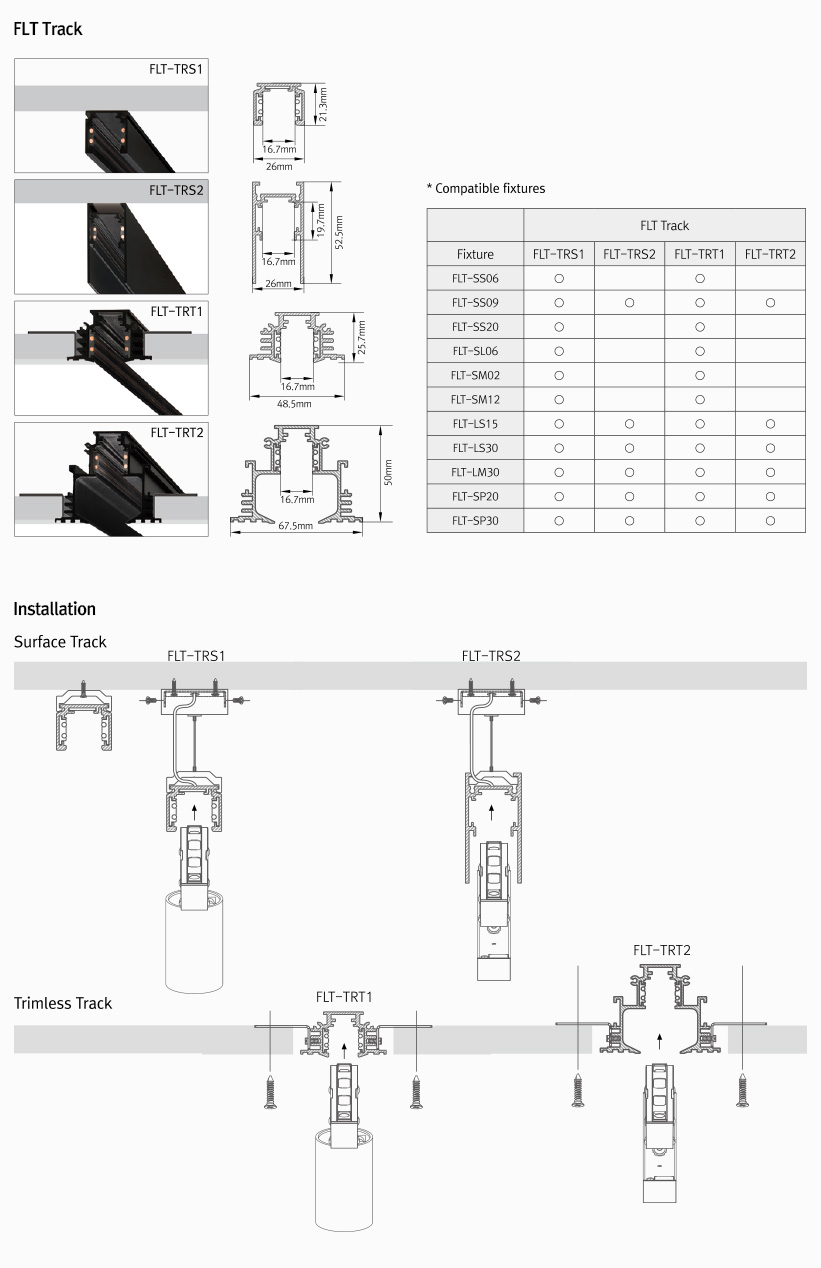

Power Connector for FLT | FLTOPC | ||||||
|---|---|---|---|---|---|---|---|---|
 |
Direct Connector for FLT Track | FLTCPL | ||||||
 |
Suspension Bracket for TRS2 | FLT-SK-BRACKET | ||||||
 |
Suspension Power Kit for TRS2 | FLT-SK-POWER | ||||||
 |
Holder for TRT1 Track Holder to hold the track when installing |
FLT-TRT1-HOLDER | ||||||
 |
Holder for TRT2 Track Holder to hold the track when installing |
FLT-TRT2-HOLDER | ||||||
 |
Joint Bracket for TRS1 Between track to track bracket |
FLT-TRS1-JOINT | ||||||
|
Joint Bracket for TRS2 Between track to track bracket |
FLT-TRS2-JOINT | ||||||
|
Joint Bracket for TRT1,2 Between track to track bracket |
FLT-TRT-JOINT | ||||||
 |
TRT WING for Trimless Track | FLT-TRT-WING | ||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||
 |
LED Driver : FLC200-24V/T (200W DC24V) | LED Driver With 12way distributor | ||||||
 |
Dimming Interface (1-10V) : FDC-L10 | Max. 100W (100W/CH, 1CH) | ||||||
 |
Dimming Interface (0-10/1-10, DMX512) | FDA-L2M0 : Max. 200W (100W/CH, 2CH) FDA-L5M : Max. 200W (50W/CH, 5CH) |
||||||
 |
Dimming Interface (Dali) : FDD-L1DA | Max. 200W (100W/CH, 1CH) |
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V
• Wiring
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
