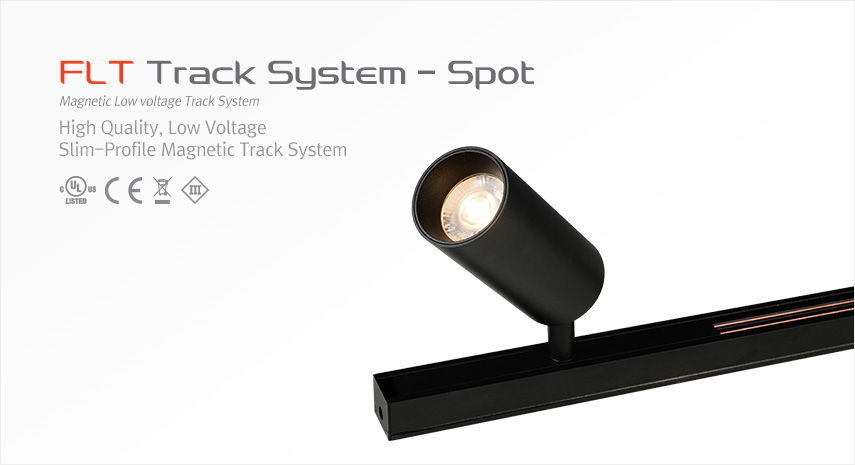

FLT Track System-Spot

FLT_Track_System_Spot

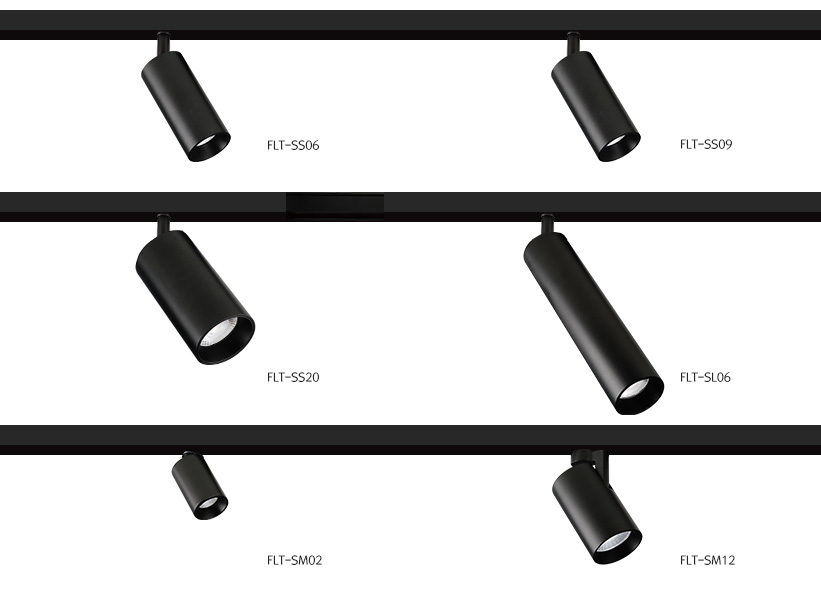

    적용사례
  • - Magnetic system for easy installation and adjustment
  • - Safe Low Voltage 24V DC
  • - Surface, Recessed and Pendant mount track available
  • - Black and White Finishes
  • - Various light fixtures and beam angle
적용사례 적용사례

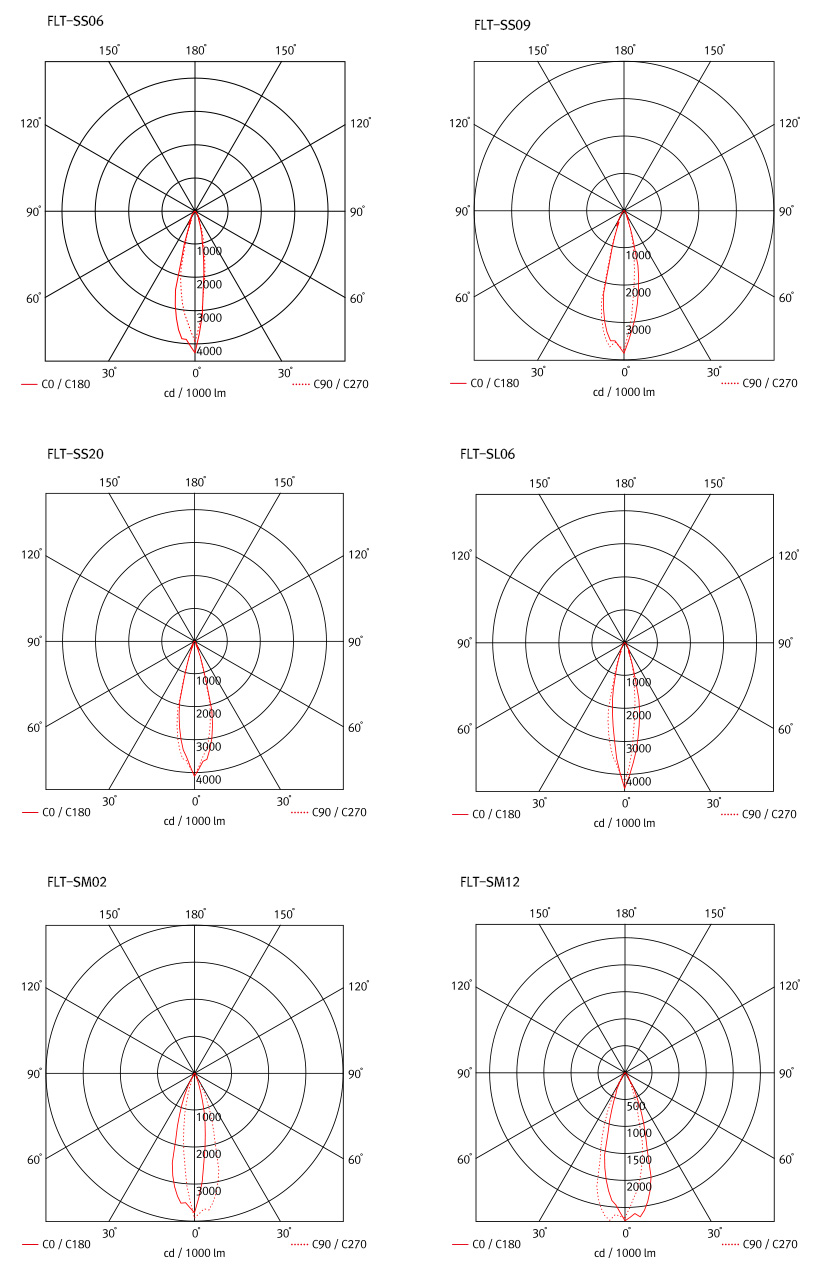

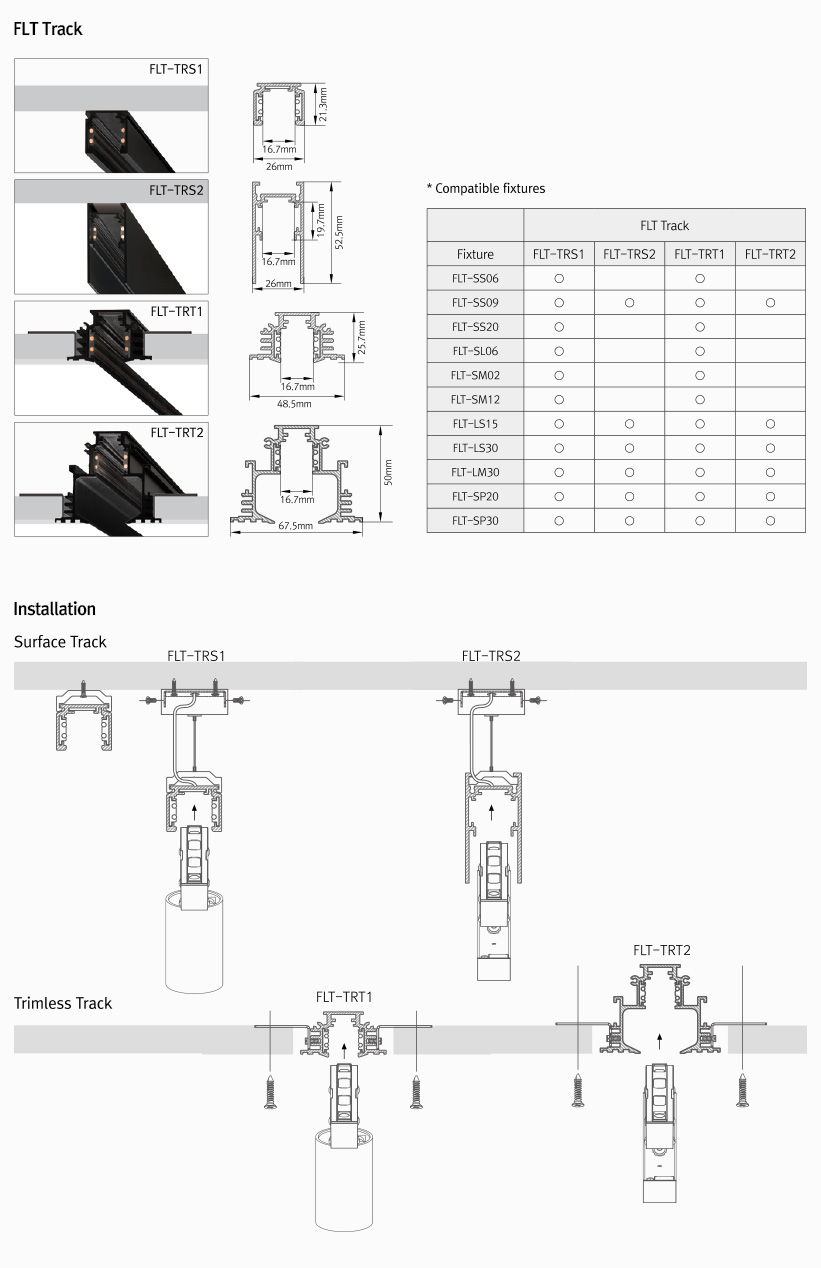

설치방법
Max. connection
Model Name Lamp Power Luminous Flux (3000K) Efficiency
FLT-SS06 30K-24V 5.1 W 362 lm 74.5 lm/W
FLT-SS09 35K-24V 8.9 W 783 lm 88.5 lm/W
FLT-SS20 30K-24V 19 W 1,368 lm 74.9 lm/W
FLT-SL06 30K-24V 5.2 W 361 lm 69.5 lm/W
FLT-SM02 30K-24V 1.7 W 98 lm 58.6 lm/W
FLT-SM12 30K-24V 10.2 W 763 lm 74.5 lm/W
  • - Power Input : DC 24V
  • - Color Rendering : Ra > 90
  • - Available Color : 3,000K/4,000K/5,700K
  • - Operating Temperature : 0 ~ 45℃

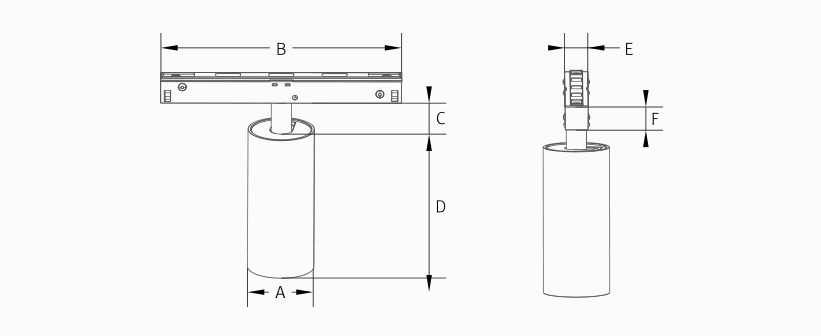

규격
Max. connection
Model Name A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
FLT-SS06 30K-24V 46 167 16 102 16 18
Max. connection
Beam angle Black White
15° FLT-SS06 30K-24V-BK-15 FLT-SS06 30K-24V-WT-15
24° FLT-SS06 30K-24V-BK-24 FLT-SS06 30K-24V-WT-24
36° FLT-SS06 30K-24V-BK-36 FLT-SS06 30K-24V-WT-36

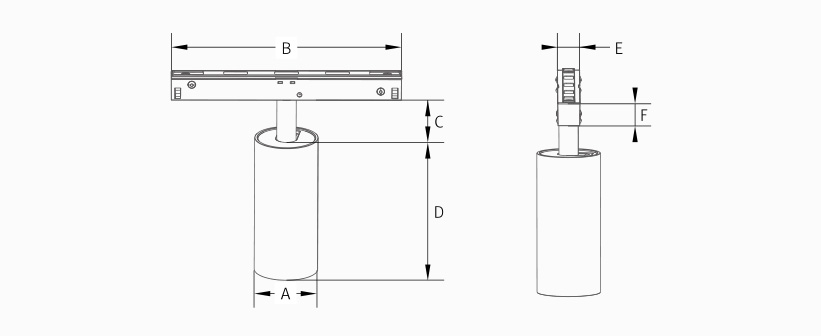

규격
Max. connection
Model Name A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
FLT-SS09 35K-24V 46 167 33 102 16 18
Max. connection
Beam angle Black White
15° FLT-SS09 30K-24V-BK-15 FLT-SS09 30K-24V-WT-15
24° FLT-SS09 30K-24V-BK-24 FLT-SS09 30K-24V-WT-24
36° FLT-SS09 30K-24V-BK-36 FLT-SS09 30K-24V-WT-36

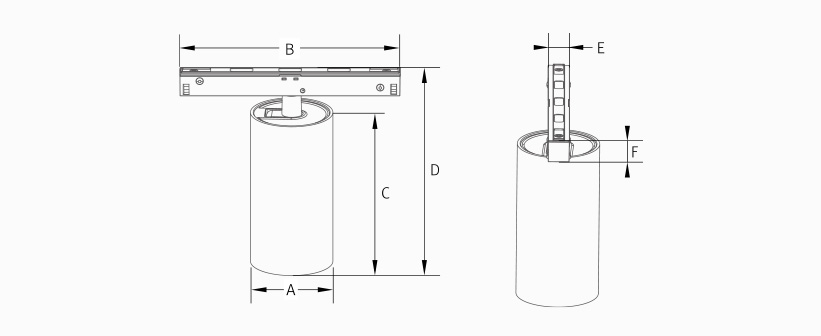

규격
Max. connection
Model Name A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
FLT-SS20 30K-24V 62.5 167 120 154 16 18
Max. connection
Beam angle Black White
15° FLT-SS20 30K-24V-BK-15 FLT-SS20 30K-24V-WT-15
24° FLT-SS20 30K-24V-BK-24 FLT-SS20 30K-24V-WT-24
36° FLT-SS20 30K-24V-BK-36 FLT-SS20 30K-24V-WT-36

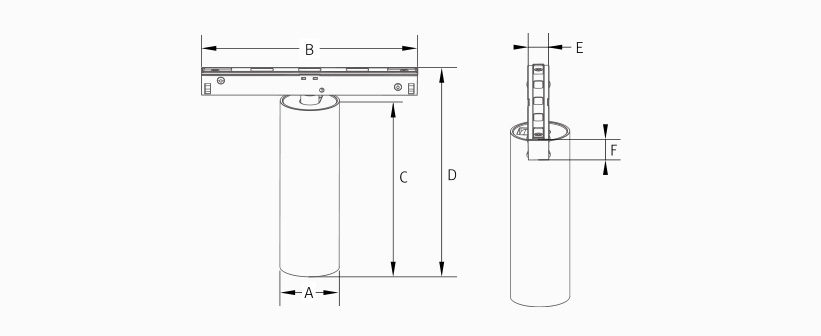

규격
Max. connection
Model Name A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
FLT-SL06 30K-24V 46 167 200 226 16 18
Max. connection
Beam angle Black White
15° FLT-SL06 30K-24V-BK-15 FLT-SL06 30K-24V-WT-15
24° FLT-SL06 30K-24V-BK-24 FLT-SL06 30K-24V-WT-24
36° FLT-SL06 30K-24V-BK-36 FLT-SL06 30K-24V-WT-36
규격
Max. connection
Model Name A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
FLT-SM02 30K-24V 34 98 56.5 85 16 16
Max. connection
Beam angle Black White
24° FLT-SM02 30K-24V-BK-24 FLT-SM02 30K-24V-WT-24
36° FLT-SM02 30K-24V-BK-36 FLT-SM02 30K-24V-WT-36
규격
Max. connection
Model Name A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
FLT-SM12 40K-24V 50 167 86 120 16 18
Max. connection
Beam angle Black White
24° FLT-SM12 30K-24V-BK-24 FLT-SM12 30K-24V-WT-24
36° FLT-SM12 30K-24V-BK-36 FLT-SM12 30K-24V-WT-36
Aceessories
Power Connector for FLT Power Connector for FLT FLTOPC
Direct Connector for FLT Track Direct Connector for FLT Track FLTCPL
Suspension Bracket for TRS2 Suspension Bracket for TRS2 FLT-SK-BRACKET
Suspension Power Kit for TRS2 Suspension Power Kit for TRS2 FLT-SK-POWER
Holder for TRT1 Track Holder to hold the track when installing Holder for TRT1 Track
Holder to hold the track when installing		 FLT-TRT1-HOLDER
Holder for TRT2 Track Holder to hold the track when installing Holder for TRT2 Track
Holder to hold the track when installing		 FLT-TRT2-HOLDER
FLT-TRS1-JOINT Joint Bracket for TRS1
Between track to track bracket		 FLT-TRS1-JOINT
FLT-TRS2-JOINT Joint Bracket for TRS2
Between track to track bracket		 FLT-TRS2-JOINT
FLT-TRT-JOINT Joint Bracket for TRT1,2
Between track to track bracket		 FLT-TRT-JOINT
TRT WING for Trimless Track TRT WING for Trimless Track FLT-TRT-WING
LED Driver with 12way distributor, with power cord (1,800mm) LED Driver with 12way distributor, with power cord (1,800mm)
Max. connection
Part No FLC30-24V/T FLC75-24V-P/T
Capacity 30W 24V 75W 24V
LED Driver : FLC200-24V/T (200W DC24V) LED Driver : FLC200-24V/T (200W DC24V) LED Driver With 12way distributor
Dimming Interface (1-10V) : FDC-L10 Dimming Interface (1-10V) : FDC-L10 Max. 100W (100W/CH, 1CH)
Dimming Interface (0-10/1-10, DMX512) Dimming Interface (0-10/1-10, DMX512) FDA-L2M0 : Max. 200W (100W/CH, 2CH)
FDA-L5M : Max. 200W (50W/CH, 5CH)
Dimming Interface (Dali) : FDD-L1DA Dimming Interface (Dali) : FDD-L1DA Max. 200W (100W/CH, 1CH)
FDD-L1DA (DALI to PWM translator)

FDD-L1DA (DALI to PWM translator)

• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual

FDC-L10 (0-10V/1-10V to PWM translator)

• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FDD-L20 (0-10V/1-10V to PWM translator)

FDD-L20 (0-10V/1-10V to PWM translator)

• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual

FDA-L2MO (DMX512/0-10V/1-10V to PWM translator)

• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FDA-L5M (DMX512 to PWM translator) Video Manual

FDA-L5M (DMX512 to PWM translator)

• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL

FSM-Z1 (ZIGBEE Switch)

• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE

FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL

FDD-L2Z (ZIGBEE Interface)

• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
