FLX Stix DVS Swivel

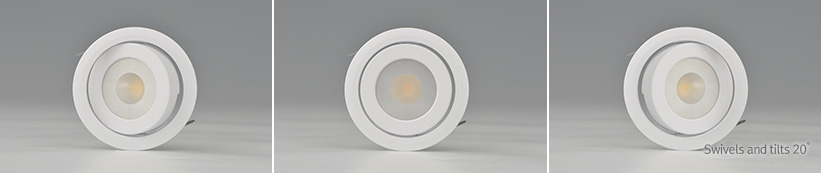

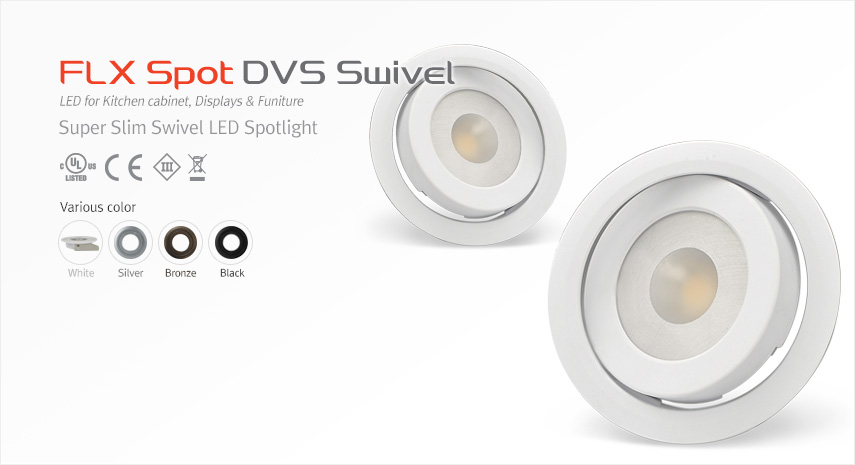

- - Супер тонкие светодиодные поворотные споты.

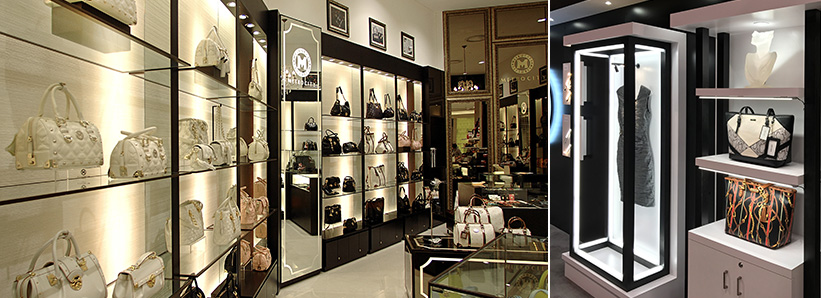

- - Идеальное решение для подсветки кухонных шкафов и другой мебели.
- - Может одновременно использоваться с другими светильниками из серии DIVA 2.
- - Один 4 Вт диод устраняет возможность появления множественных теней.
- - Отсутствие теплоотдачи и УФ-излучения. Доступны разные цвета- серебро, золото, белый, черный.
- - Различные варианты монтажа: врезной, накладной и в гипсокартон.
- - Диммируемый.
Различные Варианты
| Mode Name | Lamp Power | Luminous Flux | Efficiency | Beam Angle |
|---|---|---|---|---|
| DVS4A 40K-24V-SW-WT-25 | 4.5 W | 487 lm | 108 lm/w | 25˚ |
| DVS4A 40K-24V-SW-WT-45 | 4.6 W | 502 lm | 109 lm/w | 45˚ |
| DVS4A 40K-24V-SW-WT-60 | 4.6 W | 495 lm | 105 lm/w | 60˚ |
- - Color : White, Black, Silver, Gold
- - Power Input : DC24V
- - Color Rendering : Ra > 80
- - Available Color : 2,700K/3,000K/3,500K/4,000K/5,700K
- - Operating Temperature : 0~45℃
 |

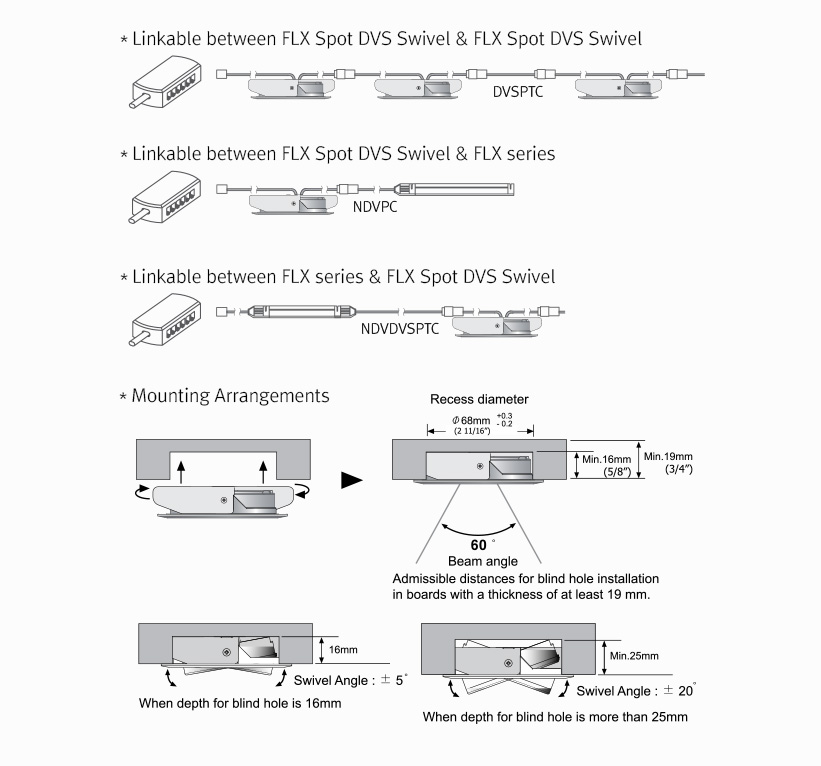

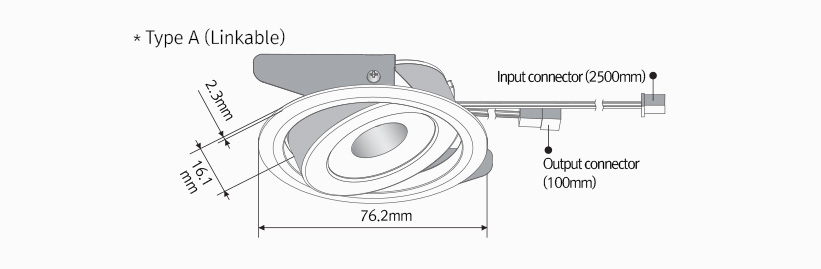

FLX Spot DVS Swivel linkable type |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
Extension cable : DVSPTC (2,500mm) | Between FLX Spot DVS Swivel & FLX Spot DVS Swivel or 6 way distributor | ||||||||
 |
Connecting cable : NDVDVSPTC (1,000mm) | Between FLX Spot DVS Swivel & FLX Stix NDV * Available Color : Black, Gray |
||||||||
|
Connecting cable : NDPDVSPTC (1,000mm) | Between FLX Spot DVS Swivel & FLX Stix NDP * Available Color : Black, Gray |
||||||||
 |
Connecting cable : NDVPC (2,500mm) | Between FLX Stix NDV & FLX Spot DVS Swivel | ||||||||
|
Connecting cable : NDPPC (2,500mm) | Between FLX Stix NDP & FLX Spot DVS Swivel | ||||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||||
 |
LED Driver : FLC200-24V/T (200W 24V) | LED Driver With 12way distributor | ||||||||
 |
Dimming Interface (1-10V) : FDC-L10 | Max. 100W (100W/CH, 1CH) Video Manual | ||||||||
 |
Dimming Interface(0-10/1-10V, DMX512) : FDA-L2M0 | Max. 200W (100W/CH, 2CH) Manual | ||||||||
 |
Dimming Interface (Dali) : FDD-L1DA |
Max. 200W (100W/CH, 1CH) | ||||||||
 |
Door and motion detection sensor : FLS-M24V | Voltage : DC 24V | ||||||||
 |
Human-body detection sensor : FLS-P24V | Voltage : DC 24V |
FDD-L1DA (DALI to PWM translator)
• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual
• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V
• Wiring
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
