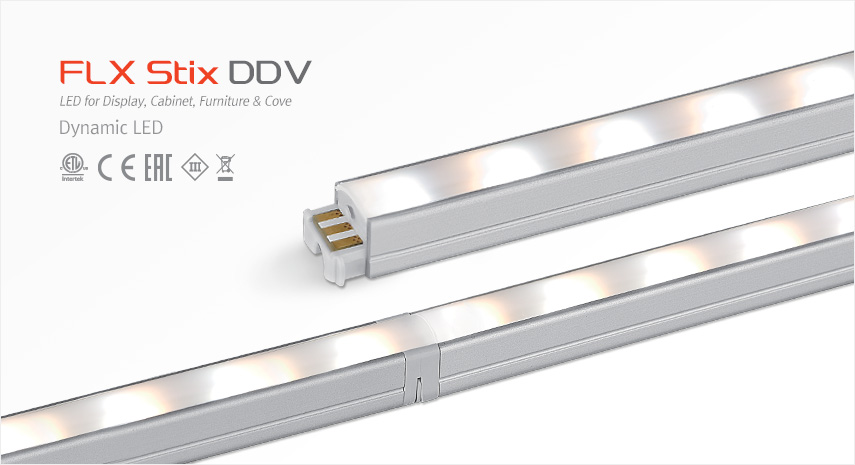

FLX Stix DDV
- - Изменяемая температура цвета.
- - Возможность установки на клипсе или на магните.
- - Бесшовное соединение, отсутствие темных пятен.
- - Экологически безопасный продукт.
- - Возможность установки на клипсе или на магните

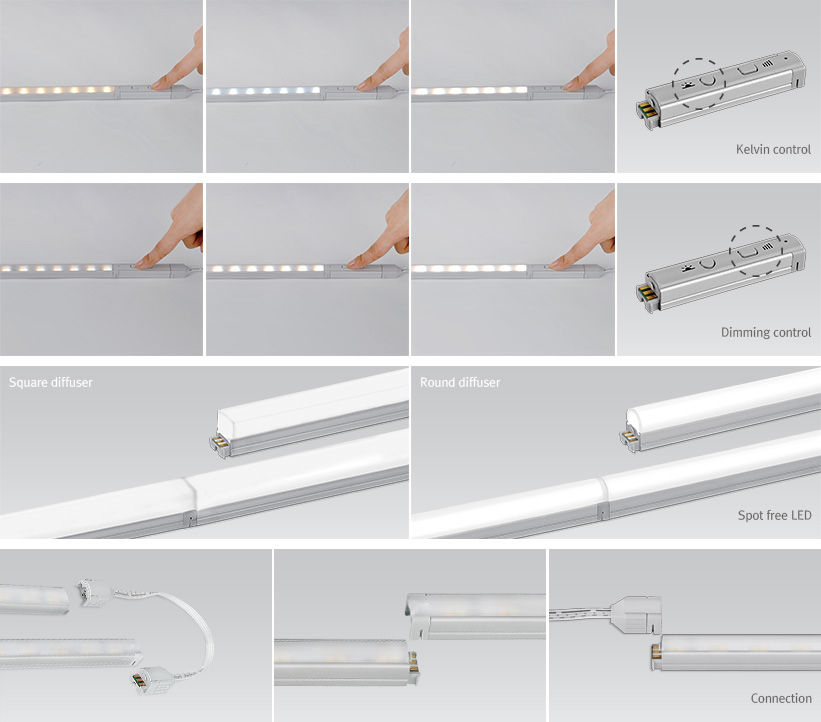

Различные Варианты

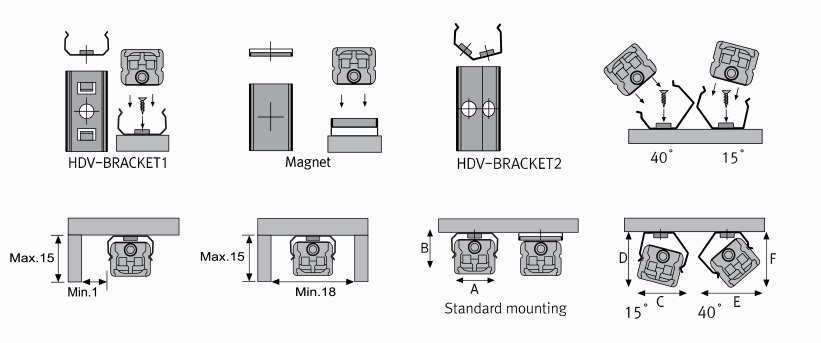

- W/ Bracket
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | |
|---|---|---|---|---|---|---|
| Flat type | 16.8 | 14.2 | 17.5 | 16.5 | 19.1 | 17.5 |
| Round type | 16.8 | 22.1 | 18.8 | 24.4 | 23.4 | 22.9 |
| Square type | 16.8 | 22.6 | 21.3 | 26.2 | 25.7 | 25.7 |

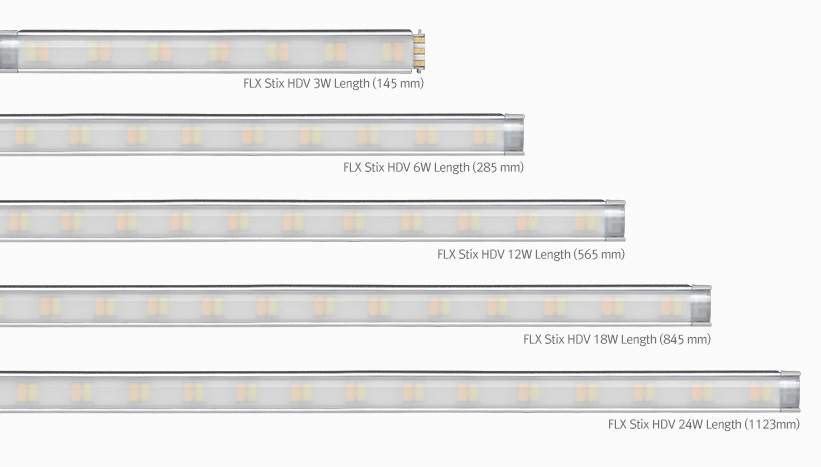

| Модель | Мощность (Вт) | Световой поток |
|---|---|---|
| DDV3 WC-24V | 3W | 225 lm |
| DDV6 WC-24V | 6W | 510 lm |
| DDV12 WC-24V | 12W | 1,020 lm |
| DDV18 WC-24V | 18W | 1,530 lm |
| DDV24 WC-24V | 24W | 2,040 lm |
- - питание 24В
- - Энергоэффективность : 85 lm/W
- - Цветопередача : Ra > 85
- - t° цвета : 2,700K~6,000K
- - Рабочая температура : 0~45℃
- - Максимальное соединение 75В

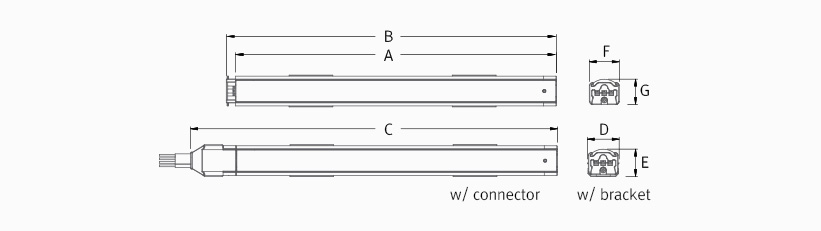

| Модель | Питание (B) | Мощность (Вт) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) |
|---|---|---|---|---|---|---|---|---|---|
| DDV3 WC-24V | DC 24 | 2.9 | 140 | 145 | 162 | 16 | 14 | 15 | 12.5 |
| DDV6 WC-24V | DC 24 | 5.8 | 280 | 285 | 302 | 16 | 14 | 15 | 12.5 |
| DDV12 WC-24V | DC 24 | 11.6 | 560 | 565 | 582 | 16 | 14 | 15 | 12.5 |
| DDV18 WC-24V | DC 24 | 17.4 | 840 | 845 | 862 | 16 | 14 | 15 | 12.5 |
| DDV24 WC-24V | DC 24 | 23.2 | 1,118 | 1,123 | 1,140 | 16 | 14 | 15 | 12.5 |

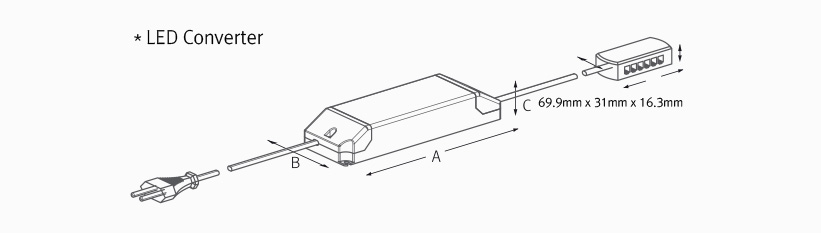

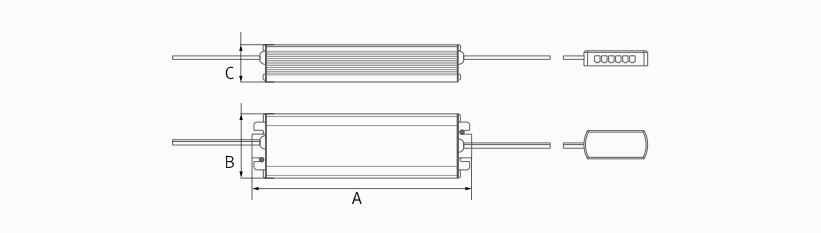

| Модель | A(mm) | B(mm) | C(mm) |
|---|---|---|---|
| FLC15-24V/T | 121 | 45 | 16 |
| FLC30-24V/T | 150 | 41 | 31 |
| FLC75-24V/T | 180 | 60 | 32 |
| Модель | A(mm) | B(mm) | C(mm) |
|---|---|---|---|
| FLC200-24V/T | 228 | 68 | 39 |
 |
Connecting cables (Between FLX Stix DDV & FLX Stix DDV) |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Power cable : HDVPC | Power cable 2500mm (Between FLX Stix DDV & 6-way distributor) | ||||||||||
 |
Mounting bracket : HDV-BRACKET1 | Included in fixture HDV-BRACKET1(A) : 1set = 2pcs HDV-BRACKET1(B) : 1set = 3pcs |
||||||||||
 |
Angle bracket (15˚ & 40˚) : HDV-BRACKET2 | HDV-BRACKET2(A) : 1set = 2pcs HDV-BRACKET2(B) : 1set = 3pcs |
||||||||||
 |
Sidefeed for seamless extension (3W) : DDV3 WC-24V-S | The dimension is the same as DDV3 WC-24V Powered only through cable, no power supply on the input connector |
||||||||||
 |
End cap : HDV - CAP | Included in fixture | ||||||||||
 |
LED Driver with 12way distributor, with power cord(1800mm) |
|
||||||||||
 |
LED Driver : FLC200-24V/T (200W 24V) | LED Driver With 12way distributor | ||||||||||
 |
Dimming Interface(0-10/1-10V, DMX512) : FDA-L2M0 | Max. 200W (100W/CH, 2CH) Manual | ||||||||||
 |

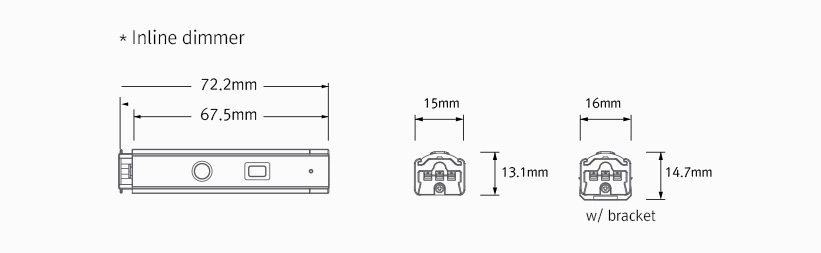

Inline dimmer : DDVDIM | Max 75W in a row | ||||||||||
 |
Wireless dimmer (RF) : FRWDIM | Voltage : Battery type DC3V | ||||||||||
 |
Wireless receiver (RF) : FRW-L4M | Max. 480W (120W/CH, 4CH) | ||||||||||
 |

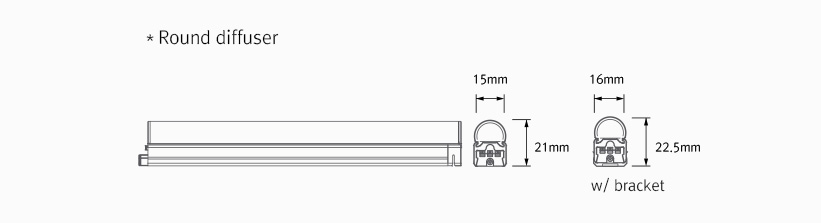

Round diffuser |
|
||||||||||
 |

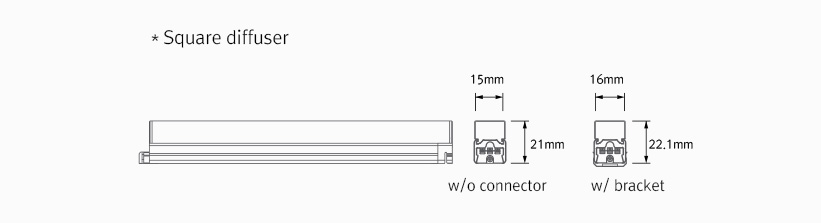

Square diffuser |
|
||||||||||
 |
Door and motion detection sensor : FLS-M24V | Voltage : DC 24V | ||||||||||
 |
Human-body detection sensor : FLS-P24V | Voltage : DC 24V |
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
