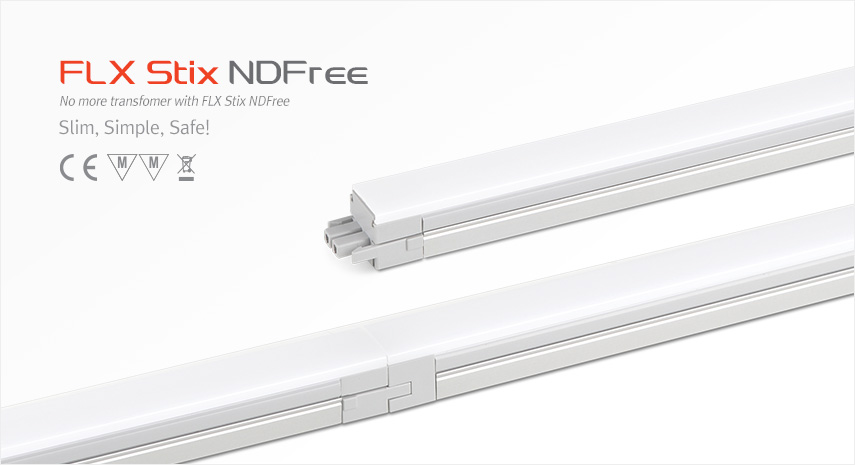

FLX Stix NDFree

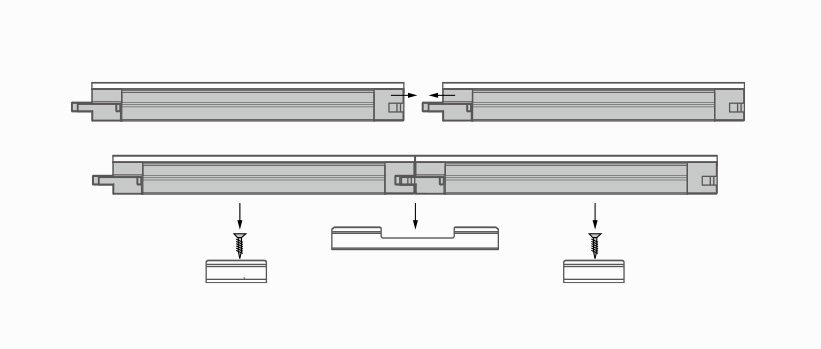

- - Easy and quick installation, Long connection
- - LED driver is not requried (AC Direct Powered)
- - Innovative Slim design
- - Safe connection with locking system
- - No dark spot at the linkage point for seamless effect
- - Line voltage dimming

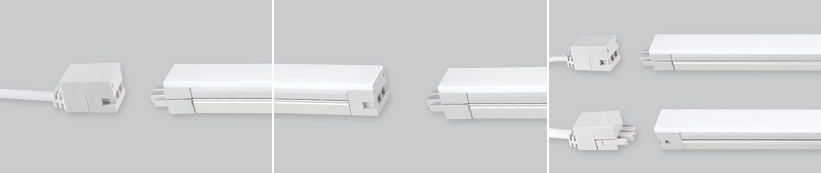

Различные Варианты

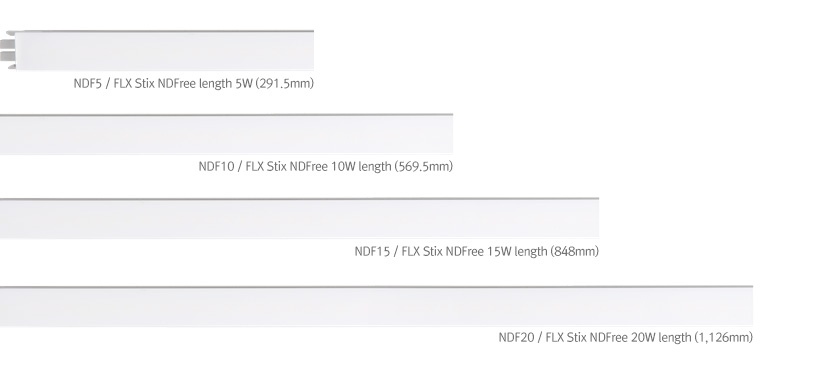

| Модель | Lamp Power | Luminous Flux | Efficiency |
|---|---|---|---|
| NDF4 40K-230V-C90 | 4 W | 340 lm | 85 lm/W |
| NDF8 40K-230V-C90 | 8 W | 720 lm | 90 lm/W |
| NDF12 40K-230V-C90 | 12 W | 1,080 lm | 90 lm/W |
| NDF16 40K-230V-C90 | 16 W | 1,440 lm | 90 lm/W |
- - Power Input : AC 220~240V
- - Power Factor : PF > 0.9
- - Color Rendering : Ra > 90
- - Available Color : 2,700K/3,000K/3,500K/4,000K
- - Operating Temperature : 0 ~ 45℃

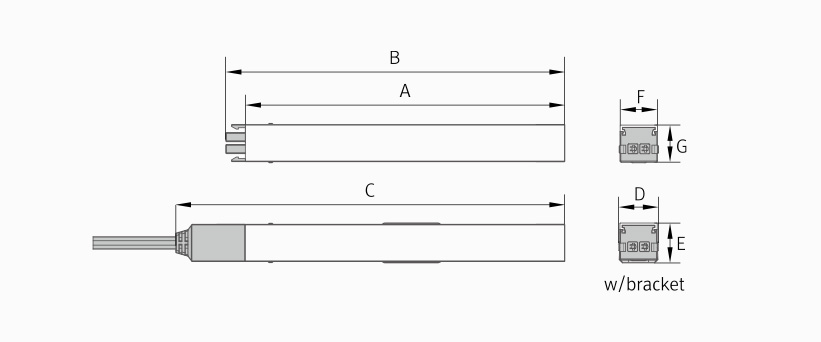

| Model Name | Voltage Input (V) | Lamp Power (W) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) |
|---|---|---|---|---|---|---|---|---|---|
| NDF4 40K-230V-C90 | AC 220 ~ 240V | 4 | 282.5 | 291.5 | 314 | 19 | 18 | 18 | 16.8 |
| NDF8 40K-230V-C90 | AC 220 ~ 240V | 8 | 560.5 | 569.5 | 592 | 19 | 18 | 18 | 16.8 |
| NDF12 40K-230V-C90 | AC 220 ~ 240V | 12 | 839 | 848 | 870.5 | 19 | 18 | 18 | 16.8 |
| NDF16 40K-230V-C90 | AC 220 ~ 240V | 16 | 1,117 | 1,126 | 1,148.5 | 19 | 18 | 18 | 16.8 |
 |
Connecting cable : NDFPTC/T |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Open power cord : NDFOPC/T (1,800mm) |
|||||||||||
 |
Power cord : NDFPC/T (1,800mm) |
|||||||||||
 |

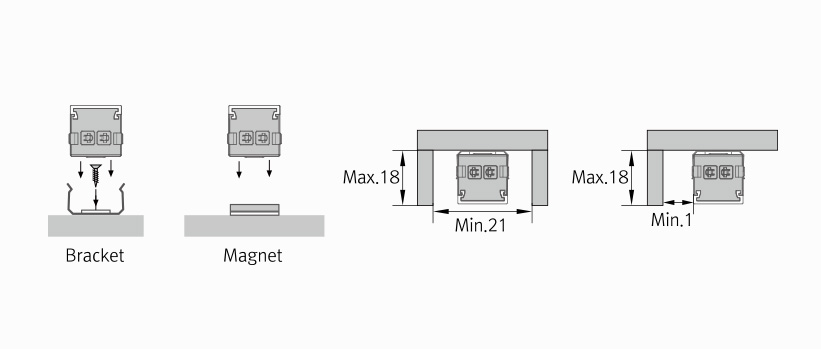

Mounting brackets : NDF-BRACKET1 |
|||||||||||
 |
Angle bracket (15˚& 40˚) : NDF-BRACKET2 |
|||||||||||
 |
Connecting bracket : NDF-BRACKET3 |
|||||||||||
 |
End Cap : NDF-CAP |
Ищете дополнительную информацию о нас и наших продуктах?
Ниже доступны ссылки для загрузки / просмотра дополнительной брошюры и технической фотометрической информации.
