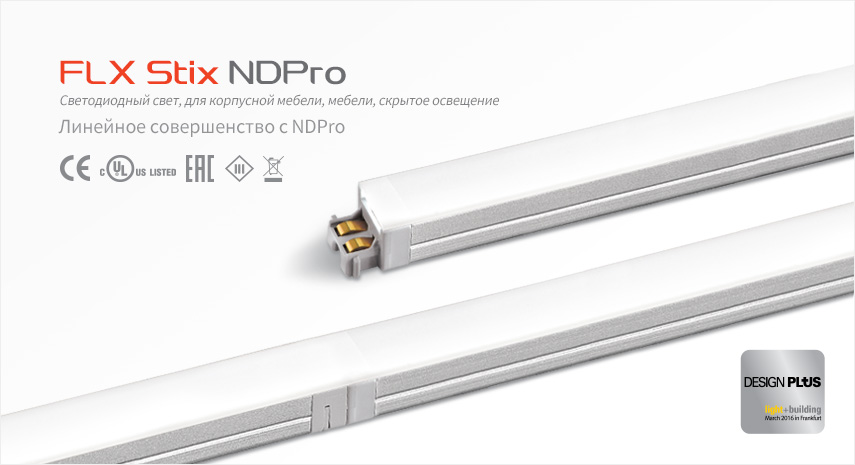

FLX Stix NDPro

FLX_Stix_NDPro
    적용사례

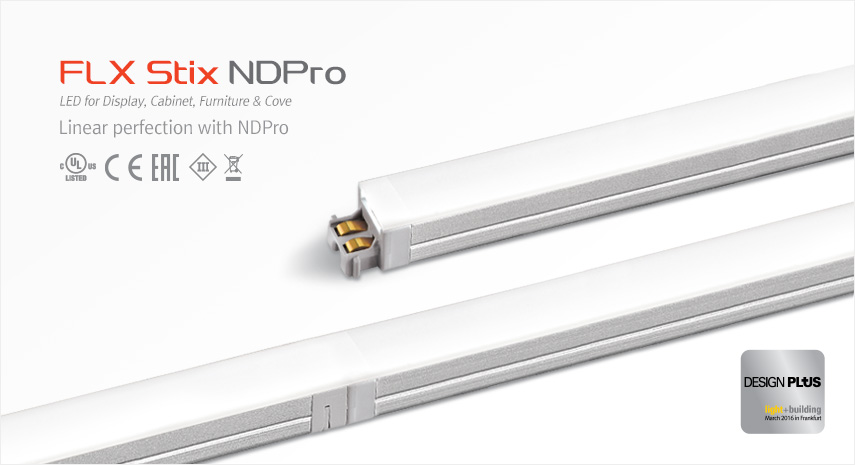

  • - Супертонкий линейный светодиодный светильник без темных пятен.
  • - Система быстрой установки.
  • - Доведенная до совершенства насыщенность цвета.
  • - Отсутствие темных пятен в местах соединения (бесшовное освещение).
  • - Различные варианты крепления к поверхности, в том числе и магнитные.
  • - Диммируемый (см. аксессуары).
적용사례

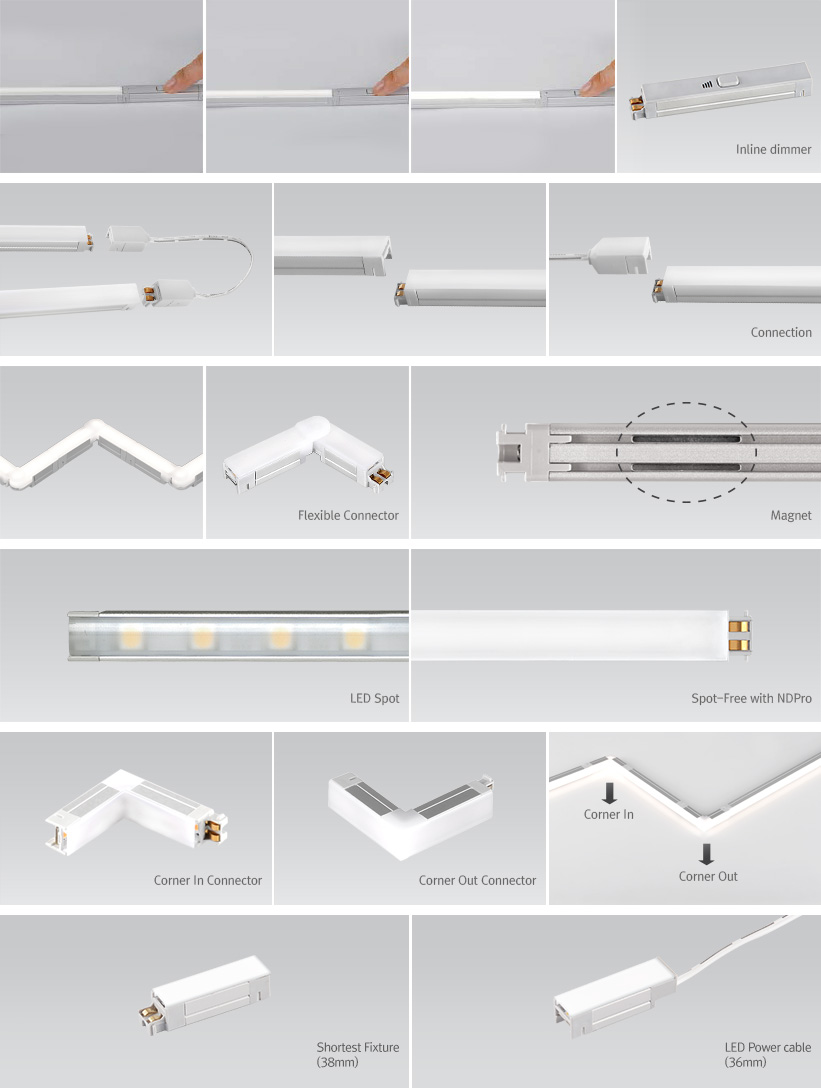

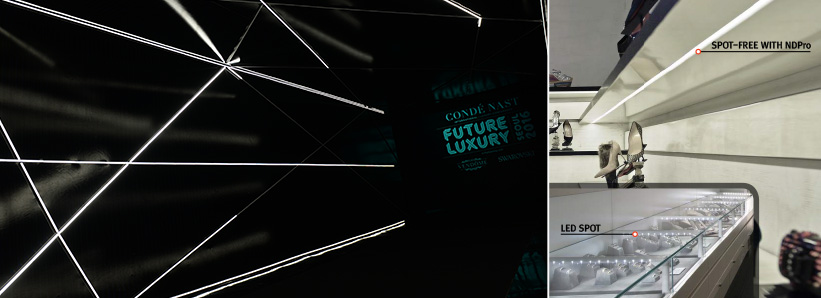

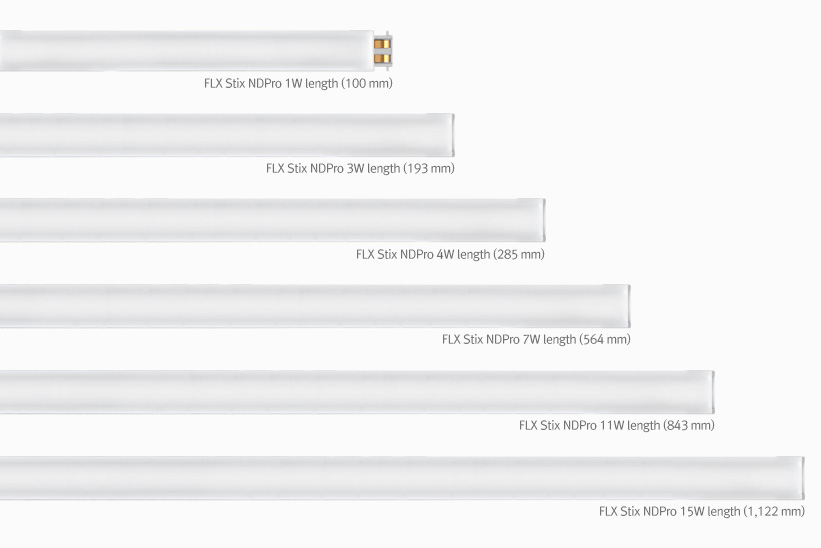

Различные Варианты

Various options
설치방법

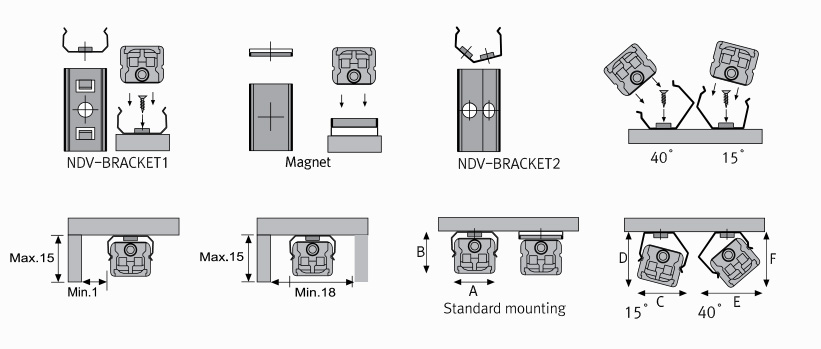

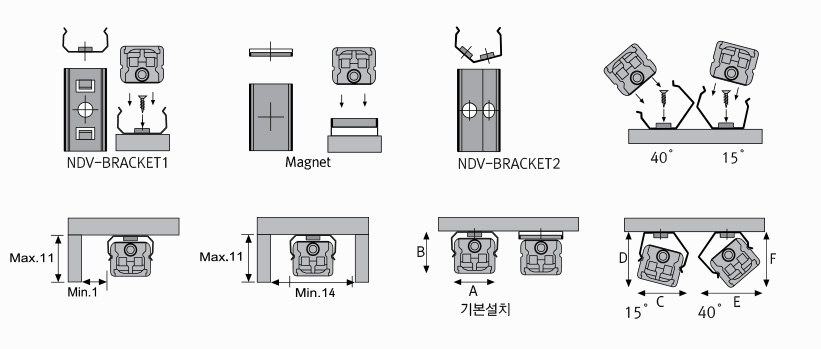

W/ Bracket

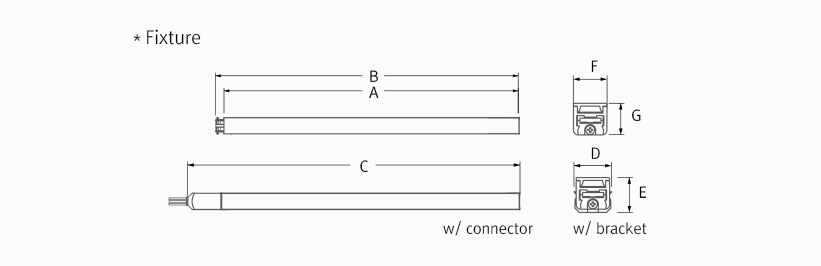

Fixture dimension
A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
Flat type 12 11 13.1 14.3 16 14.6
Max. connection

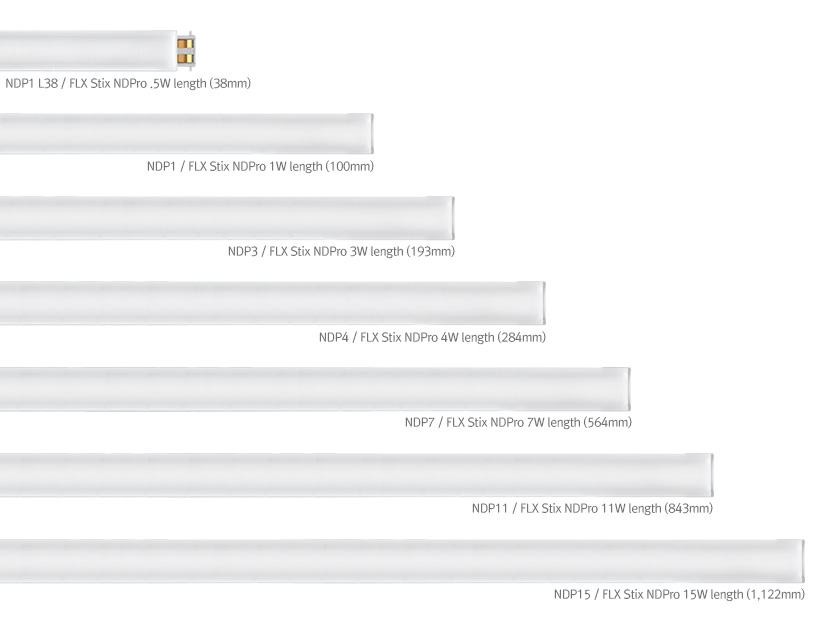

Model Name Lamp Power Luminous Flux Efficiency
NDP1 40K-24V-C90-L38 0.49W 41.9 lm 85.5 lm/W
NDP1 40K-24V-C90 1.2W 93.6 lm 78 lm/W
NDP3 40K-24V-C90 2.37W 186.9 lm 78.9 lm/W
NDP4 40K-24V-C90 3.59W 290.3 lm 81 lm/W
NDP7 40K-24V-C90 7.17W 568.4 lm 79.3 lm/W
NDP11 40K-24V-C90 10.62W 857.5 lm 80.7 lm/W
NDP15 40K-24V-C90 14.42W 1,203 lm 83.5 lm/W
  • - Power Input : DC24V
  • - Color Rendering : Ra > 90
  • - Available Color : 2,700K/3,000K/3,500K/4,000K/6,000K
  • - Operating Temperature : 0~45℃
규격
Max. connection
Модель Питание (B) Мощность (Вт) A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm)
NDP1 40K-24V-C90-L38 DC 24 .5 33 38 55 11.6 11.2 10.6 10
NDP1 40K-24V-C90 DC 24 1.2 95 100 117 11.6 11.2 10.6 10
NDP3 40K-24V-C90 DC 24 2.4 188 193 210 11.6 11.2 10.6 10
NDP4 40K-24V-C90 DC 24 3.6 279 284 301 11.6 11.2 10.6 10
NDP7 40K-24V-C90 DC 24 7.1 559 564 581 11.6 11.2 10.6 10
NDP11 40K-24V-C90 DC 24 10.8 838 843 860 11.6 11.2 10.6 10
NDP15 40K-24V-C90 DC 24 14.4 1,117 1,122 1,139 11.6 11.2 10.6 10

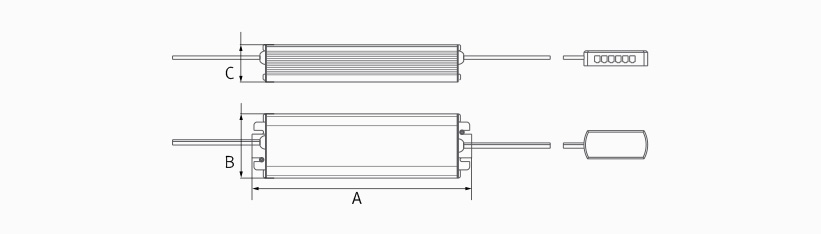

규격
Max. connection
Модель A(mm) B(mm) C(mm)
FLC30-24V/T 150 41 31
FLC75-24V/T 180 60 32
규격
Max. connection
Модель A(mm) B(mm) C(mm)
FLC200-24V/T 228 68 39
규격 규격 규격 규격
Aceessories
Connecting cables(between FLX Stix NDPro & FLX Stix NDPro Connecting cables
(between fixtures)
Max. connection
NDPPTC NDPPTC1 NDPPTC2 NDPPTC4 NDPPTC6
150mm (6inch) 300mm (1feet) 600mm (2feet) 1200mm (4feet) 1800mm (6feet)

*Available Color : Black, Gray
전원선 Power cable : NDPPC Power cable (Between FLX Stix NDP &12-way distributor)
*Available Color : Black, Gray

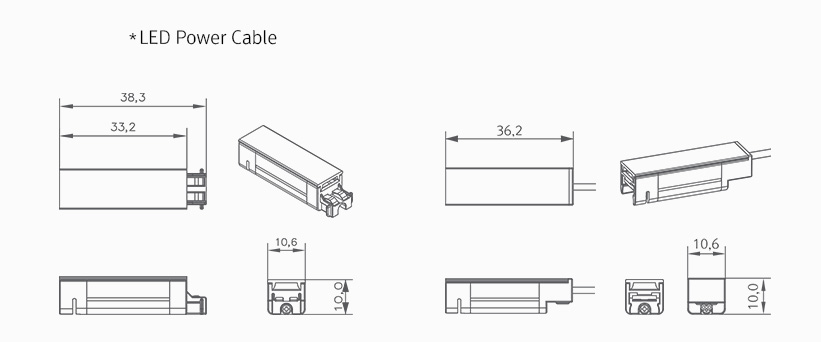

파워케이블 LED Power cable :
NDP1 40K-24V-C90-L38P		 Fixture (36mm)
Power cable (2,500mm)
고정클립 Mounting bracket :
NDP-BRACKET1		 NDP-BRACKET1(A) : 1set = 2pcs
NDP-BRACKET1(B) : 1set = 3pcs
각도클립 Angle bracket (15˚ & 40˚) : NDP-BRACKET2 NDP-BRACKET2(A) : 1set = 2pcs
NDP-BRACKET2(B) : 1set = 3pcs
Connecting Bracket Connecting Bracket :
NDP-BRACKET3		 Included in fixture
Power Bracket Power Bracket :
NDP-BRACKET4		 Included in NDPPC and NDPPTC
측면연결방식 Sidefeed for seamless extension (3W) : NDP3 40K-24V-S The dimension is the same as NDP3 40K-24V
Powered only through cable, no power supply on the input connector

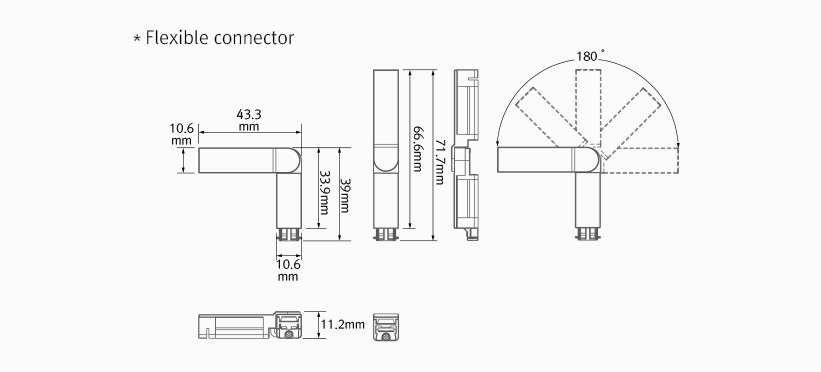

Flexible Flexible Connector :
NDP1 40K-24V-C90-FLEX

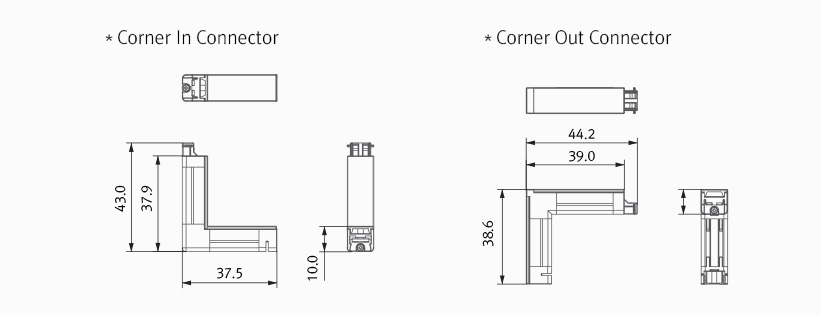

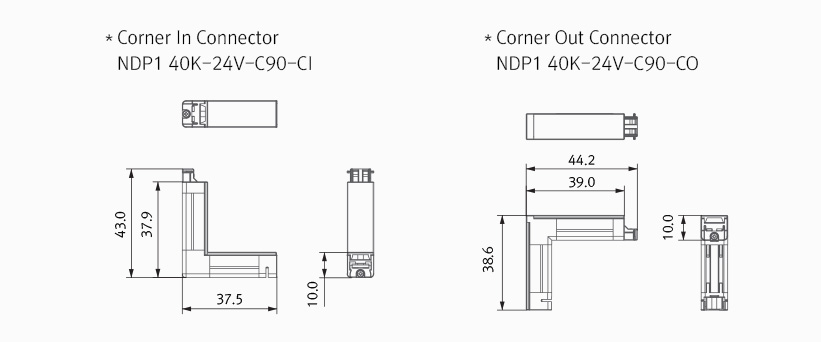

Corner In Connector Corner In Connector :
NDP1 40K-24V-C90-CI
Corner Out Connector Corner Out Connector :
NDP1 40K-24V-C90-CO
End cap End cap : NDP-CAP Included in fixture

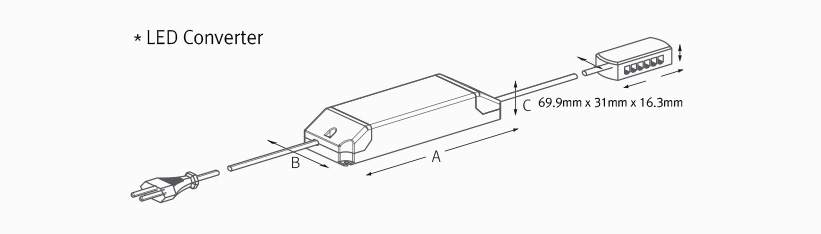

LED Converter LED Driver with 12way distributor, with power cord (1,800mm)
Max. connection
Part No FLC30-24V/T FLC75-24V-P/T
Capacity 30W 24V 75W 24V
End-CAP LED Driver : FLC200-24V/T (200W 24V) LED Driver With 12way distributor
Dimming Dimming Interface (1-10V) : FDC-L10 Max. 100W (100W/CH, 1CH) Video Manual
Dimming Dimming Interface(0-10/1-10V, DMX512) FDA-L2M0 : Max. 200W (100W/CH, 2CH)
FDA-L5M : Max. 200W (50W/CH, 5CH)
Manual
Dimming Interface (Dali) : FDD-L1DA Dimming Interface (Dali) :
FDD-L1DA		 Max. 200W (100W/CH, 1CH)
Occupancy Sensor : NDP-OSM Occupancy Sensor : NDP-OSM NDP Occupancy Sensor Inline Module

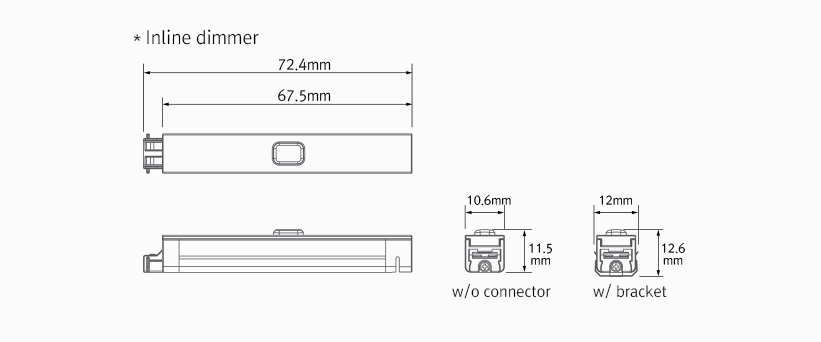

Inline Inline dimmer : NDPDIM Max 55W in a row
동작감지센서 Door and motion detection sensor : FLS-M24V Voltage : DC 24V
인체감지센서 Human-body detection sensor : FLS-P24V Voltage : DC 24V
FDD-L1DA (DALI to PWM translator)

FDD-L1DA (DALI to PWM translator)

• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual

FDC-L10 (0-10V/1-10V to PWM translator)

• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FDD-L20 (0-10V/1-10V to PWM translator)

FDD-L20 (0-10V/1-10V to PWM translator)

• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual

FDA-L2MO (DMX512/0-10V/1-10V to PWM translator)

• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FDA-L5M (DMX512 to PWM translator) Video Manual

FDA-L5M (DMX512 to PWM translator)

• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL

FSM-Z1 (ZIGBEE Switch)

• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE

FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL

FDD-L2Z (ZIGBEE Interface)

• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
