FLX Stix NDPure
- - Safe disinfection with 405nm LED
- - PMMA diffuser lens
- - Super slim linear fixture with plug and play option
- - Optional accessories available
- - For use with constant voltage DC 24V driver

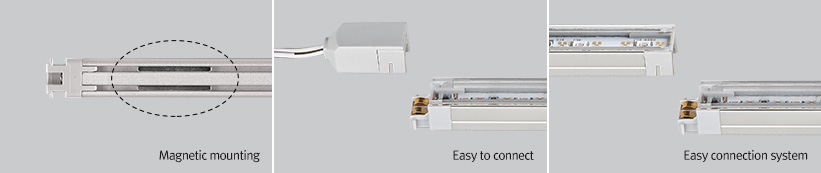

- - Multiple mounting methods including magnetic

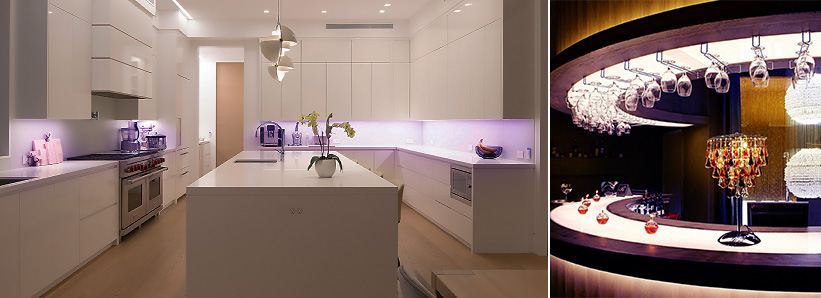

- - Suitable for many locations to create a clean, safe environment
Various options
W/ Bracket
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | |
|---|---|---|---|---|---|---|
| Flat type | 12 | 11 | 13.1 | 14.3 | 16 | 14.6 |

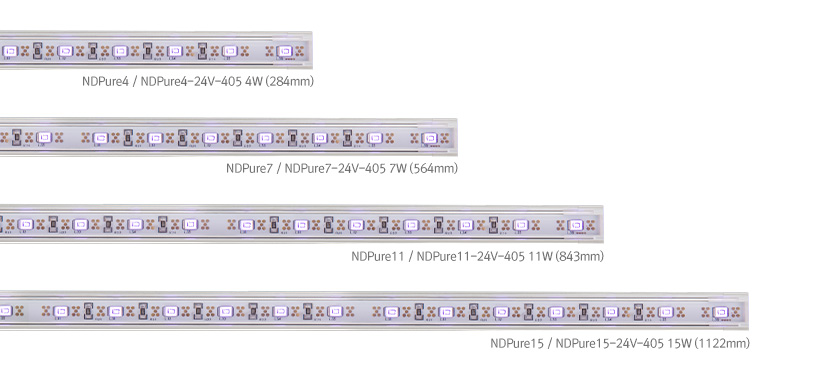

| Model Name | Lamp Power |
|---|---|
| NDPure4-24V-405 | 4W |
| NDPure7-24V-405 | 7W |
| NDPure11-24V-405 | 11W |
| NDPure15-24V-405 | 15W |
- - Power Input : DC24V
- - LED Chip : 405nm
| Model Name | Power Input (V) | Lamp Power (W) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) |
|---|---|---|---|---|---|---|---|---|---|
| NDPure4-24V-405 | DC 24 | 4 | 279 | 284 | 301 | 11.6 | 11.2 | 10.6 | 10 |
| NDPure7-24V-405 | DC 24 | 7 | 559 | 564 | 581 | 11.6 | 11.2 | 10.6 | 10 |
| NDPure11-24V-405 | DC 24 | 11 | 838 | 843 | 860 | 11.6 | 11.2 | 10.6 | 10 |
| NDPure15-24V-405 | DC 24 | 15 | 1,117 | 1,122 | 1,139 | 11.6 | 11.2 | 10.6 | 10 |
| Model Name | A(mm) | B(mm) | C(mm) |
|---|---|---|---|
| FLC30-24V/T | 150 | 41 | 31 |
| FLC75-24V/T | 180 | 60 | 32 |
| Model Name | A(mm) | B(mm) | C(mm) |
|---|---|---|---|
| FLC200-24V/T | 228 | 68 | 39 |
 |
Connecting cables (between fixtures) |
*Available Color : Black, Gray |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Power cable : NDPPC | Power cable (Between FLX Stix NDP &12-way distributor) *Available Color : Black, Gray |
||||||||||
 |
Mounting bracket : NDP-BRACKET1 |
NDP-BRACKET1(A) : 1set = 2pcs NDP-BRACKET1(B) : 1set = 3pcs |
||||||||||
 |
Angle bracket (15˚ & 40˚) : NDP-BRACKET2 | NDP-BRACKET2(A) : 1set = 2pcs NDP-BRACKET2(B) : 1set = 3pcs |
||||||||||
 |
Connecting Bracket : NDP-BRACKET3 |
Included in fixture | ||||||||||
 |
Power Bracket : NDP-BRACKET4 |
Included in NDPPC and NDPPTC | ||||||||||
 |
End cap : NDP-CAP | Included in fixture | ||||||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||||||
 |
LED Driver : FLC200-24V/T (200W 24V) | LED Driver With 12way distributor | ||||||||||
 |
Occupancy Sensor : NDP-OSM | NDP Occupancy Sensor Inline Module | ||||||||||
 |
Inline dimmer : NDPDIM | Max 55W in a row |
