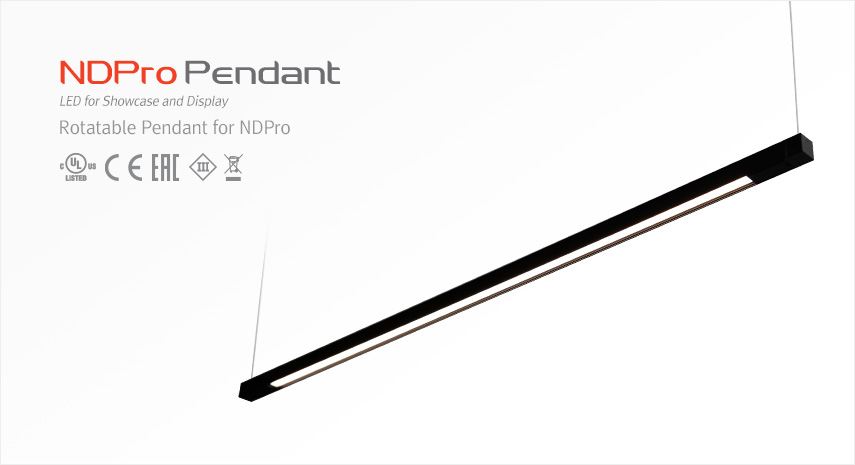

NDPro Pendant
- - Aluminum body with rotating top bar

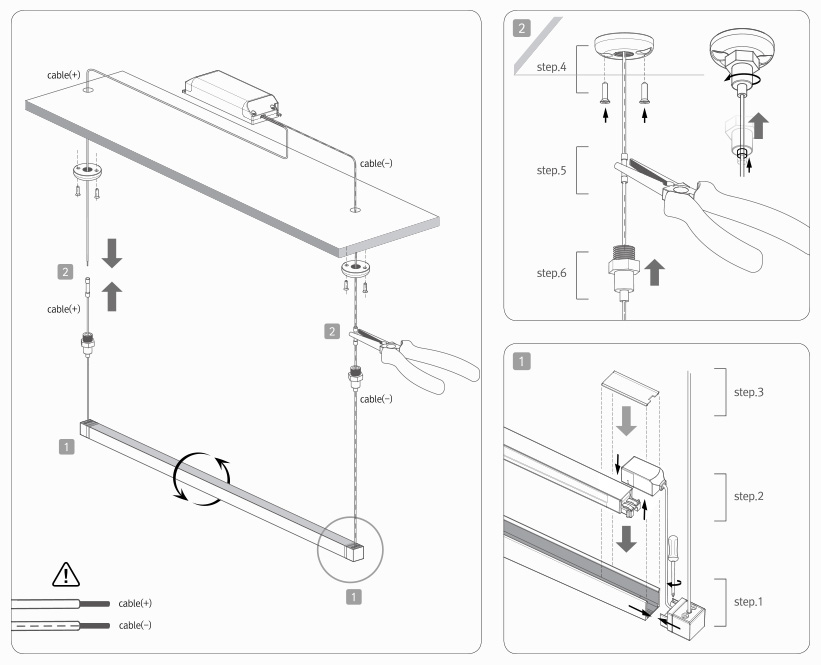

- - Easy assembly with NDPro fixture

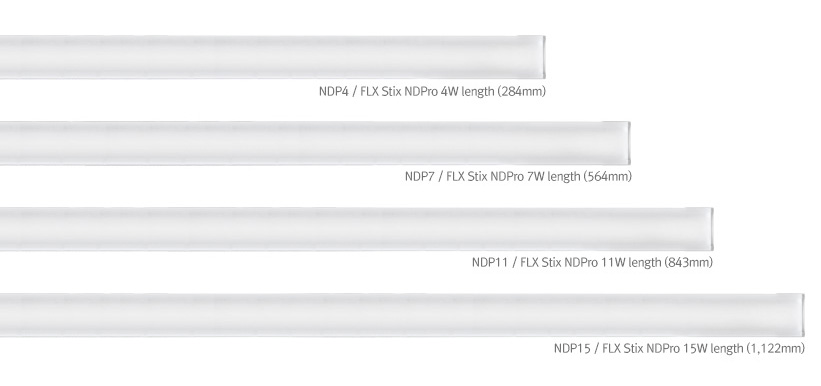

- - Various length available

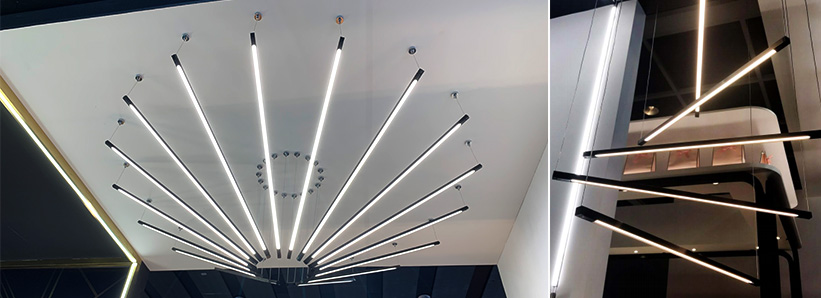

- - Ideal for Suspended Application
Various options
| Model Name | Lamp Power | Luminous Flux | Efficiency |
|---|---|---|---|
| NDP4 40K-24V-C90 | 3.59W | 290.3 lm | 81 lm/W |
| NDP7 40K-24V-C90 | 7.17W | 568.4 lm | 79.3 lm/W |
| NDP11 40K-24V-C90 | 10.62W | 857.5 lm | 80.7 lm/W |
| NDP15 40K-24V-C90 | 14.42W | 1,203 lm | 83.5 lm/W |
- - Power Input : DC24V
- - Color Rendering : Ra > 90
- - Available Color : 2,700K/3,000K/3,500K/4,000K/6,000K
- - Operating Temperature : 0~45℃

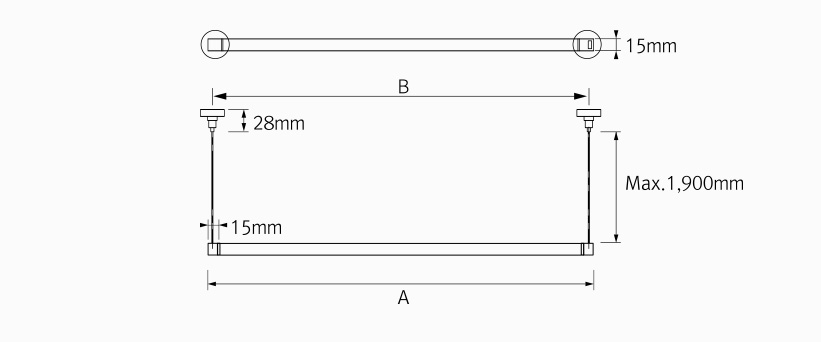

| NDPro Pendant for | Lamp Power(W) | Luminous Flux(4000K) | A(Top Length) | B(NDPro Pendant BracketMounting Holes) |
|---|---|---|---|---|
| NDP4 40K-24V-C90 | 4 | 320lm | 384mm | 369mm |
| NDP7 40K-24V-C90 | 7 | 560lm | 664mm | 649mm |
| NDP11 40K-24V-C90 | 11 | 880lm | 943mm | 928mm |
| NDP15 40K-24V-C90 | 15 | 1,200lm | 1,222mm | 1,207mm |
 |
NDP Pendant Kit : NDP-PD-KIT | |||||||
|---|---|---|---|---|---|---|---|---|
 |
NDPro Top Bar | NDP4TBNDP7TBNDP11TBNDP15TB | ||||||
 |
NDPro Fixture | NDP4 40K-24V-C90NDP7 40K-24V-C90NDP11 40K-24V-C90NDP15 40K-24V-C90 | ||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
