NDPro Showcase Arm
- - Aluminum body with rotating top bar

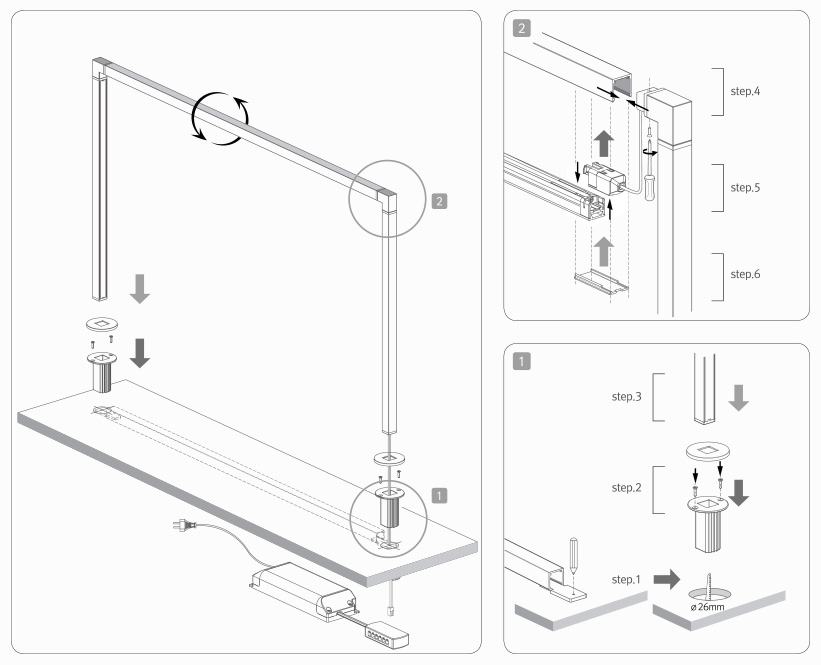

- - Easy assembly with NDPro fixture

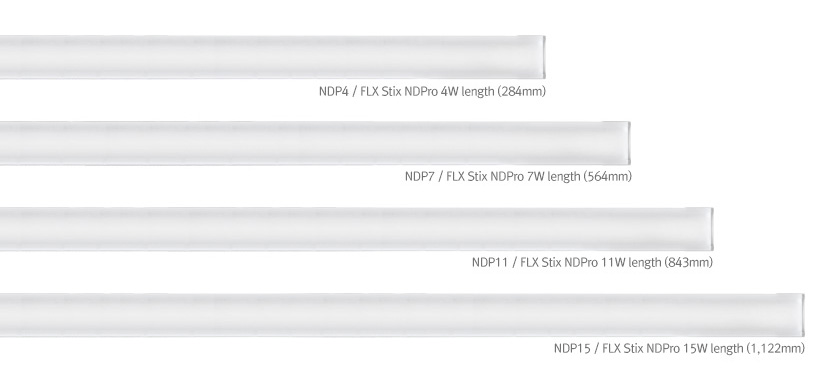

- - Various length available

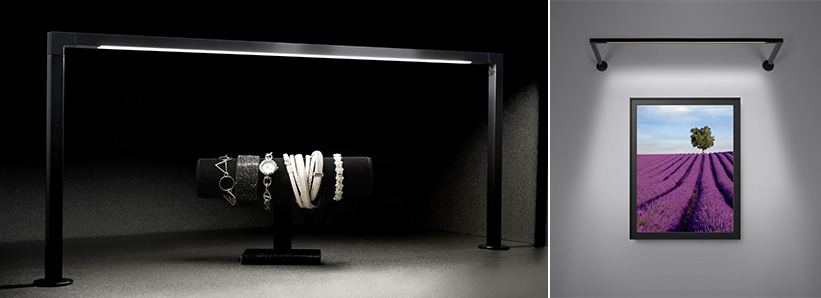

- - Ideal for showcase or exhibition

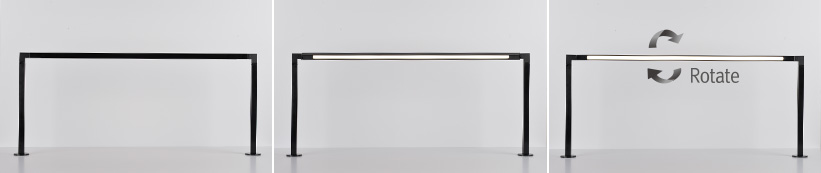

Various options
Model Name | Lamp Power | Luminous Flux | Efficiency |
---|---|---|---|
NDP4 40K-24V-C90 | 3.59W | 290.3 lm | 81 lm/W |
NDP7 40K-24V-C90 | 7.17W | 568.4 lm | 79.3 lm/W |
NDP11 40K-24V-C90 | 10.62W | 857.5 lm | 80.7 lm/W |
NDP15 40K-24V-C90 | 14.42W | 1,203 lm | 83.5 lm/W |
- - Power Input : DC24V
- - Color Rendering : Ra > 90
- - Available Color : 2,700K/3,000K/3,500K/4,000K/6,000K
- - Operating Temperature : 0~45℃

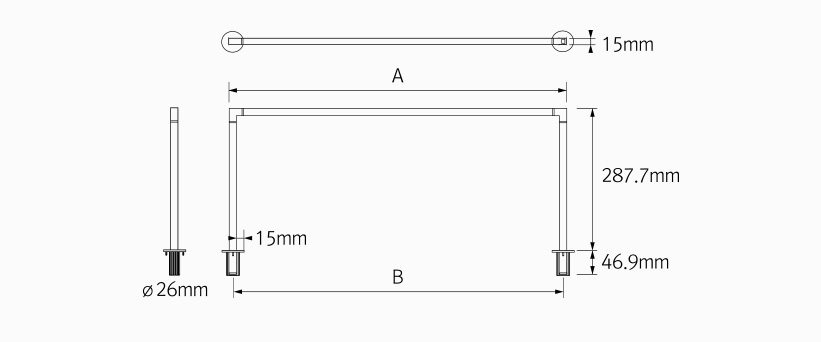

NDPro Showcasw Arm for | Lamp Power(W) | Luminous Flux(4000K) | A(Top Length) | B(Recommened Distancefor Mounting Holes) |
---|---|---|---|---|
NDP4 40K-24V-C90 | 3.6 | 359 lm | 396.5mm | 381mm |
NDP7 40K-24V-C90 | 7.1 | 515 lm | 676.5mm | 661mm |
NDP11 40K-24V-C90 | 10.8 | 823 lm | 955.5mm | 940mm |
NDP15 40K-24V-C90 | 14.4 | 1,032 lm | 1,234.5mm | 1,219mm |
NDP Showcase Arm Kit : NDP-SA-KIT |
||||||||
---|---|---|---|---|---|---|---|---|
NDPro Top Bar | NDP4TBNDP7TBNDP11TBNDP15TB | |||||||
NDPro Fixture | NDP4 40K-24V-C90NDP7 40K-24V-C90NDP11 40K-24V-C90NDP15 40K-24V-C90 | |||||||
LED Driver with 12way distributor, with power cord (1,800mm) |
|
