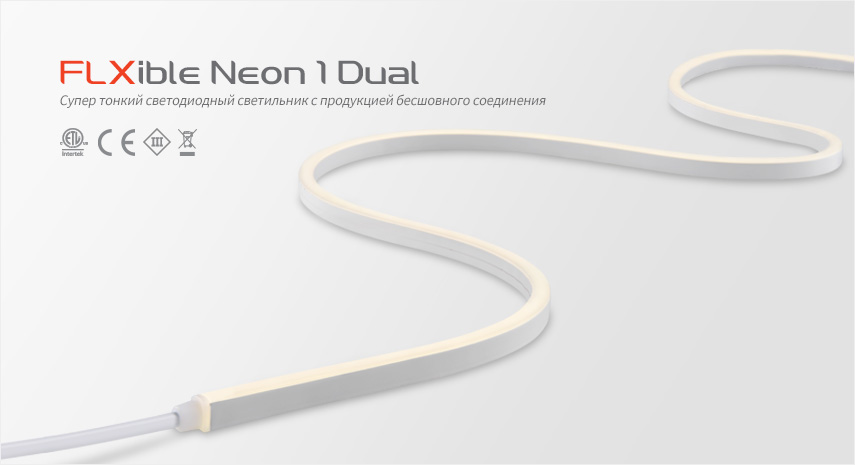

FLXible Neon 1 Dual
- - Bend direction horizontally
- - Ultra slim spot free illumination
- - Dimmable with 0-10V, forward/reverse phase

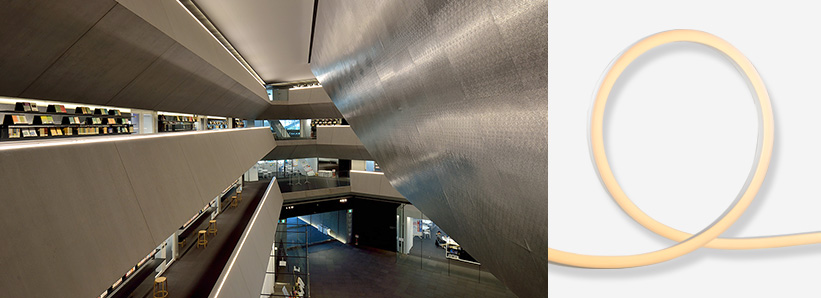

- - Indoor and outdoor application
- - Field Cuttable (38.5mm) for customized length
- - Available in standard lengths of 1, 2, 3, 4, 5M reels
- - Tunable white
Тип подачи питания

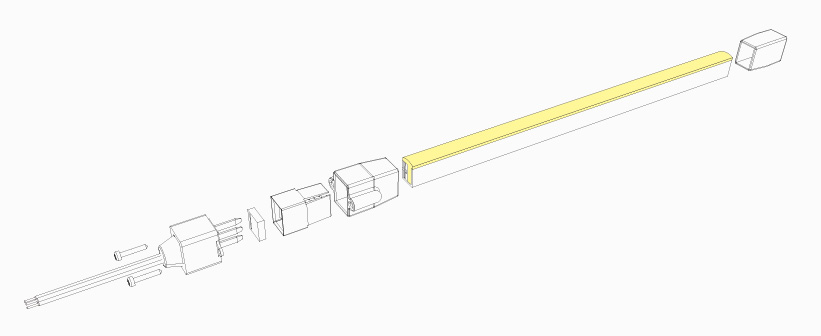

Field Termination
| Model Name | Power Input | Lamp Power | Lumens | Color Temperature | Color Rendering | Operating Temperature |
|---|---|---|---|---|---|---|
| FN1 SC-24V-1M | DC 24V | 19.17 W | 504.6 lm | 2,200K ~ 4,000K | Ra > 80 | -10℃ to 50℃ |
- * IP Rate
IP67 with Factory Termination (Customized Length Available)
IP65 with Field Termination
IP20 with Indoor Termination
 |

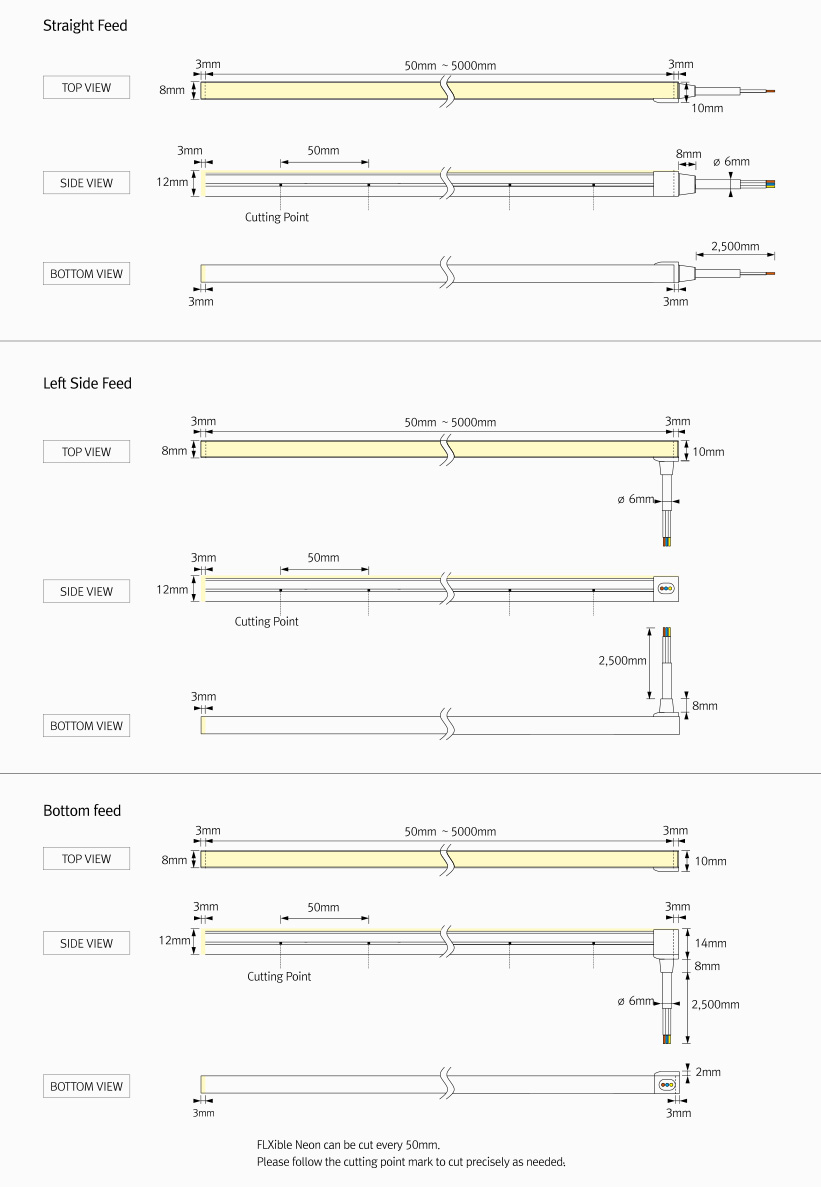

FLXible Neon 1 Straight Feed (Customized Length Available) | FN1 SC-24V (5m)FN1 SC-24V (4m)FN1 SC-24V (3m)FN1 SC-24V (2m)FN1 SC-24V (1m) | ||||||
|---|---|---|---|---|---|---|---|---|
 |
FLXible Neon 1 Left Side Feed (Customized Length Available) | FN1 SC-24V-LS (5m)FN1 SC-24V-LS (4m)FN1 SC-24V-LS (3m)FN1 SC-24V-LS (2m)FN1 SC-24V-LS (1m) | ||||||
 |
FLXible Neon 1 Bottom Feed (Customized Length Available) | FN1 SC-24V-BS (5m)FN1 SC-24V-BS (4m)FN1 SC-24V-BS (3m)FN1 SC-24V-BS (2m)FN1 SC-24V-BS (1m) | ||||||
 |

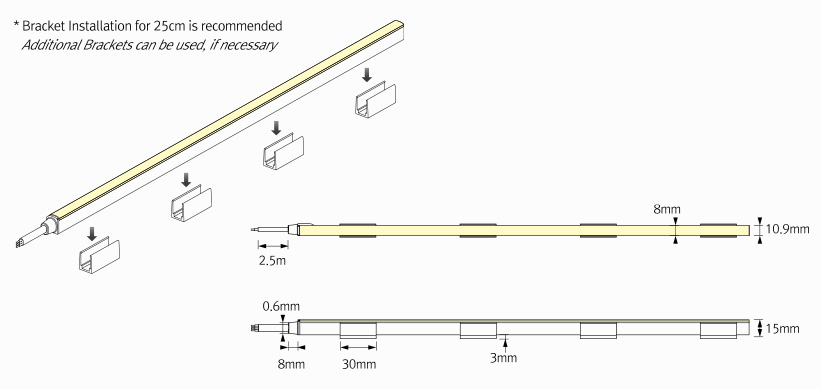

Mounting Brackets | FN1-BRACKET1 : 1set = 4pcs | ||||||
 |
FN1 Extrusion Line (1,200mm) | FN1-EXL | ||||||
 |
Angled Brackets (15˚ & 40˚) | FN1-BRACKET2 : 1set = 4pcs | ||||||
 |
Expanding Stick | FN-EPS | ||||||
 |

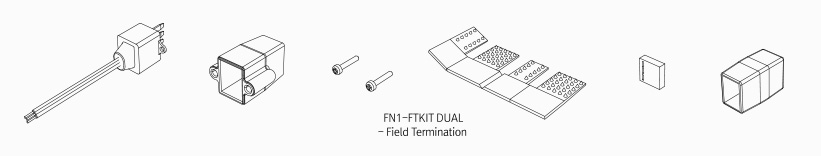

Field Termination (IP65) | FN1-FTKIT-DUAL | ||||||
 |
LED Driver with 12way distributor, with power cord (1,800mm) |
|
||||||
 |
LED Driver : FLC200-24V/T (200W, DC24V) | LED Driver With 12way distributor | ||||||
 |
Dimming Interface (0-10/1-10, DMX512) | FDA-L2M0 : Max. 200W (100W/CH, 2CH)FDA-L5M : Max. 200W (50W/CH, 5CH) Manual |
FDD-L20 (0-10V/1-10V to PWM translator)
• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V
• Wiring
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual
• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FDA-L5M (DMX512 to PWM translator) Video Manual
• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V
• Wiring
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL
• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE
FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL
• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
