FLX Stix NDV

FLX_Stix_NDV

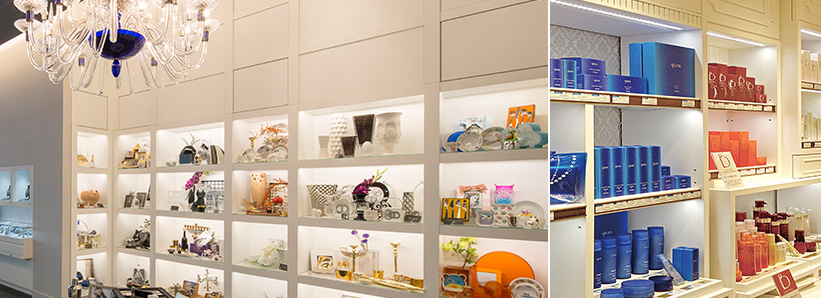

    적용사례

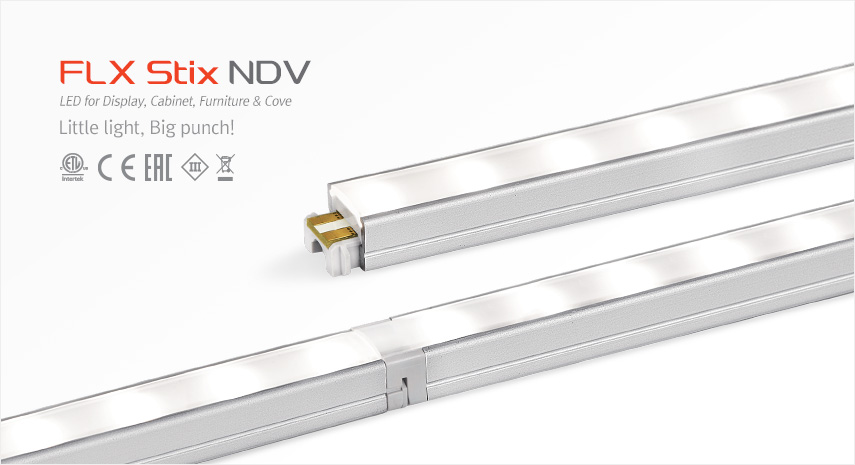

  • - Супер тонкий светодиодный линейный светильник.
  • - Простая система установки и большой запас по возможности увеличению длины (широкий ассортимент аксессуаров)
  • - Для использования с постоянным напряжением 24 В. Диммируемый (компактный линейный диммер см. аксессуаров).
적용사례

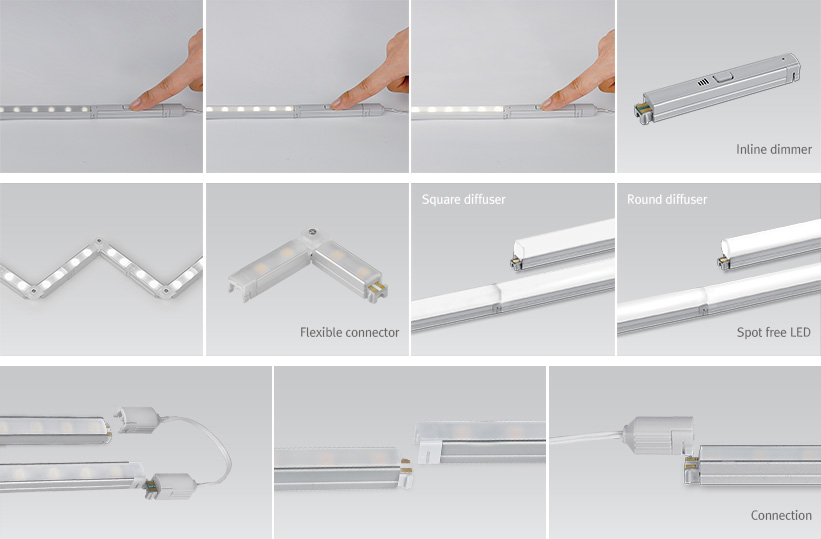

Различные Варианты

Various options

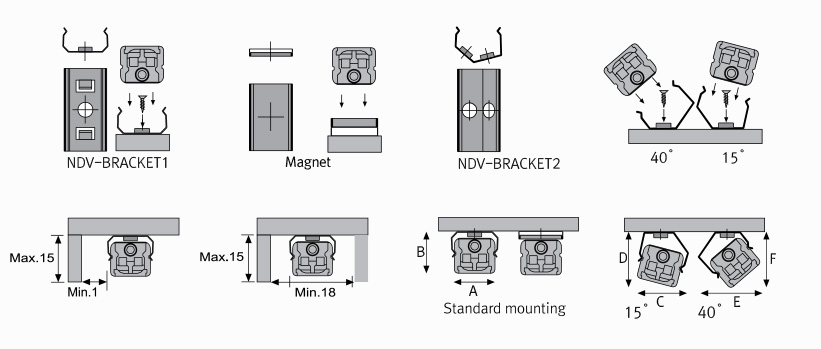

설치방법

- W/ Bracket

Fixture dimension
A(mm) B(mm) C(mm) D(mm) E(mm) F(mm)
Flat type 11.9 11.2 13.5 13.5 14.5 13
Round type 11.9 19.8 15.7 15.7 18.8 20.3
Square type 11.9 19.6 15.5 15.8 18.8 20.3
Max. connection
Model Name Lamp Power Luminous Flux Efficiency

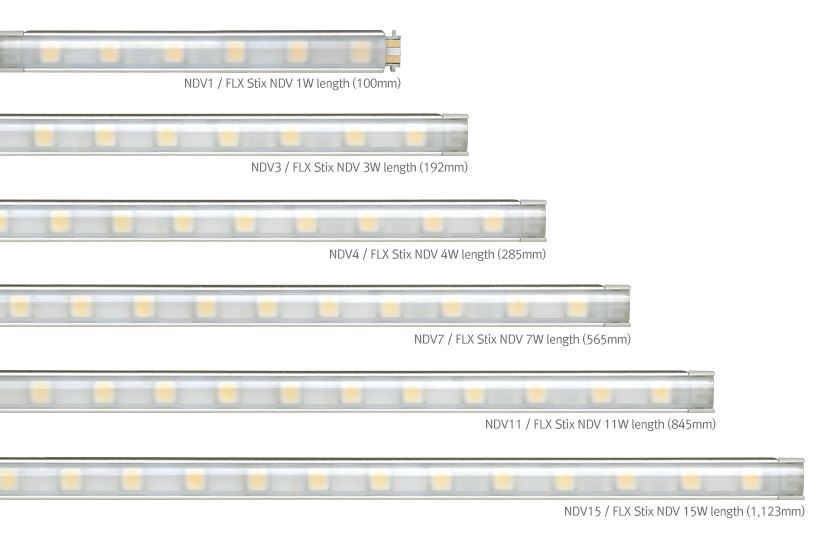

NDV1 40K-24V 1.2 W 79 lm 63 lm/W
NDV3 40K-24V 2.5 W 160 lm 64 lm/W
NDV4 40K-24V 3.7 W 248 lm 67 lm/W
NDV7 40K-24V 7.5 W 511 lm 68 lm/W
NDV11 40K-24V 11.4 W 742 lm 65 lm/W
NDV15 40K-24V 15.2 W 1,012 lm 67 lm/W
  • - Power Input : DC24V
  • - Color Rendering : Ra > 85
  • - Available Color : 2,700K/3,000K/3,500K/4,000K/6,000K
  • - Operating Temperature : 0~45℃
규격
Max. connection

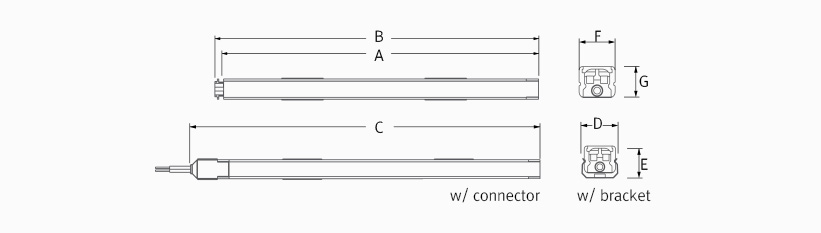

Model Name Power Input (V) Lamp Power (W) A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm)
NDV1 40K-24V DC 24 1.2 95 100 117 12 11 10.6 9
NDV3 40K-24V DC 24 2.5 188 192 210 12 11 10.6 9
NDV4 40K-24V DC 24 3.7 280 285 302 12 11 10.6 9
NDV7 40K-24V DC 24 7.5 560 565 582 12 11 10.6 9
NDV11 40K-24V DC 24 11.4 840 845 862 12 11 10.6 9
NDV1 5 40K-24V DC 24 15.2 1,118 1,123 1,140 12 11 10.6 9
규격
Max. connection
Модель A(mm) B(mm) C(mm)
FLC30-24V/T 150 41 31
FLC75-24V/T 180 60 32
규격
Max. connection
Модель A(mm) B(mm) C(mm)
FLC200-24V/T 228 68 39

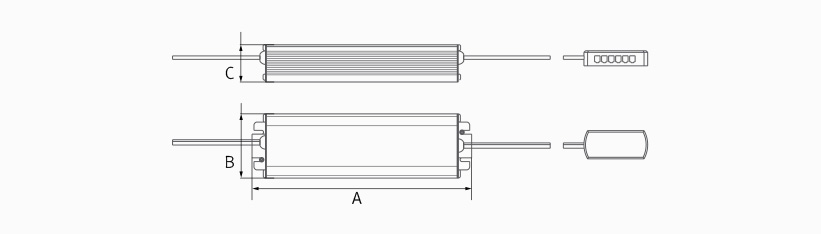

규격 규격 규격 규격
Aceessories
연결선 Connecting cables(between FLX Stix NDV & FLX Stix NDV)
Max. connection
NDVPTC NDVPTC1 NDVPTC2 NDVPTC4 NDVPTC6
150mm (6inch) 300mm (1feet) 600mm (2feet) 1200mm (4feet) 1800mm (6feet)
전원선 Power cable : NDVPC Power cable (Between DIVA2 & 6-way distributor)
고정클립 Mounting bracket :
NDV-BRACKET 1		 Included in fixture
NDV-BRACKET1(A) : 1set = 2pcs
NDV-BRACKET1(B) : 1set = 3pcs
각도클립 Angle bracket (15˚ & 40˚) : NDV-BRACKET 2 NDV-BRACKET2(A) : 1set = 2pcs
NDV-BRACKET2(B) : 1set = 3pcs
측면연결방식 Sidefeed for seamless extension (3W) : NDV3 40K-24V-S The dimension is the same as NDV3 40K-24V
Powered only through cable, no power supply on the input connector

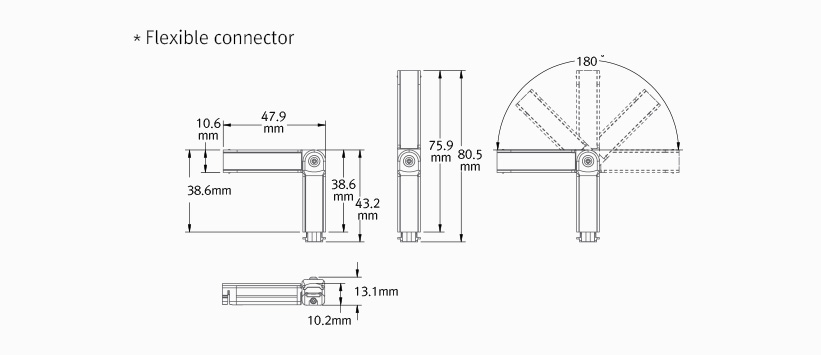

Flexible Connector :
NDV1 40K-24V-FLEX		 FLX Stix NDV Flexible connector(1W)
End cap End cap : NDV-CAP Included in fixture

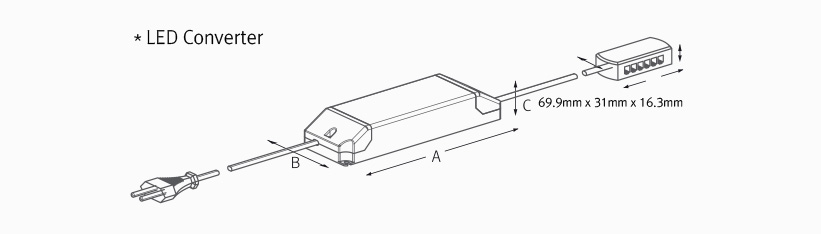

LED Converter LED Driver with 12way distributor, with power cord (1800mm)
Max. connection
Part No FLC30-24V/T FLC75-24V-P/T
Capacity 30W 24V 75W 24V
LED Driver LED Driver : FLC200-24V/T (200W 24V) LED Driver With 12way distributor
Dimming Dimming Interface (0-10/1-10,DMX512) FDA-L2M0 : Max. 200W (100W/CH, 2CH)
FDA-L5M : Max. 200W (100W/CH, 5CH)
Manual

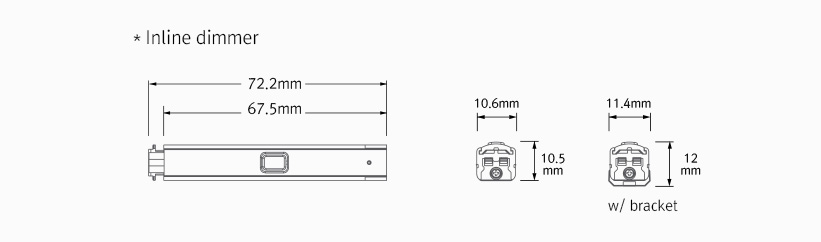

dimmer Inline dimmer : NDVDIM Max 55W in a row

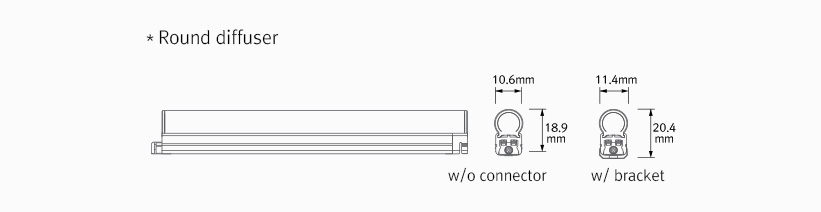

Round diffuser Round diffuser
Max. connection
NDV1 CVRM NDV3 CVRM NDV4 CVRM NDV7 CVRM NDV11 CVRM NDV15 CVRM
1W 3W 4W 7W 11W 15W
Square diffuser Square diffuser
Max. connection
NDV1 CVSM NDV3 CVSM NDV4 CVSM NDV7 CVSM NDV11 CVSM NDV15 CVSM
1W 3W 4W 7W 11W 15W
Door and motion detection sensor Door and motion detection sensor : FLS-M24V Voltage : DC 24V
>Human-body detection sensor Human-body detection sensor : FLS-P24V Voltage : DC 24V
Connecting bracket Connecting bracket : NDV-BRACKET3 Included in fixture
Power bracket Power bracket : NDV-BRACKET4 Provided with Power cable (NDVPC)
FDD-L1DA (DALI to PWM translator)

FDD-L1DA (DALI to PWM translator)

• Specification
Channel : 1CH
Input Signal : DALI
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FDC-L10 (0-10V/1-10V to PWM translator) Video Manual

FDC-L10 (0-10V/1-10V to PWM translator)

• Specification
Channel : 1CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 100W
Size : W78 X H40 X D16 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FDD-L20 (0-10V/1-10V to PWM translator)

FDD-L20 (0-10V/1-10V to PWM translator)

• Specification
Channel : 2CH
Input Signal : DC 0-10V, DC 1-10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W108 X H20 X D47 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FDA-L2MO (DMX512/0-10V/1-10V to PWM translator) Manual

FDA-L2MO (DMX512/0-10V/1-10V to PWM translator)

• Specification
Channel : 2CH
Input Signal : DMX512, DC 0~10V/1~10V
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (100W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FDA-L5M (DMX512 to PWM translator) Video Manual

FDA-L5M (DMX512 to PWM translator)

• Specification
Channel : 5CH
Input Signal : DMX512
Output Signal : PWM
Output Load : DC 24V LED Max. 200W (50W/CH)
Size : W200 X H50 X D35 (mm)
Rated Input : DC 24V

• Wiring

제품결선도
FSM-Z1 (ZIGBEE Switch) / WIRELESS CONTROL

FSM-Z1 (ZIGBEE Switch)

• Specification
Rated Input : DC 3V (CR2032 Battery)
Size : W120 X H14.5 X D70 (mm)
Output Signal : ZIGBEE

FDD-L2Z (ZIGBEE Interface) / WIRELESS CONTROL

FDD-L2Z (ZIGBEE Interface)

• Specification
Model no : FDD-L2Z
Input Voltage : DC 24V
Output load :DC 24V LED Max.200W (100W/CH)
Input Signal : ZIGBEE
Channel : 2CH
Size : W108 X H20 X D47 (mm)
